TBB Renewable provides comprehensive service and support to you to help you grow and achieve optimal satisfaction.

      All-in-one Solar Inverter
      RiiO Sun
      RiiO Sun solar inverter for off-grid applications product features

      RiiO Sun

      All-in-one Solar Inverter

      RiiO Sun

      2kVA-6kVA

      RiiO Sun is a powerful all-in-one solar inverter equipped with a high-performance sine wave inverter, AC charger, an MPPT solar charge controller to maximize and regulate DC power from solar panel for charging the battery bank. Transformer-based design makes it worry-free to start up motor loads and electronic loads. Its built-in high-speed automatic transfer switch ensures you uninterruptible power supply all the time. It is an ideal solution for backup power and off-grid applications.

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      All-in-one design with built-in MPPT

      All-in-one design with built-in MPPT

      Power assist & power control

      Power assist & power control

      0-4ms UPS transfer time for critical loads

      0-4ms UPS transfer time for critical loads

      ECO mode to prolong the backup time

      ECO mode to prolong the backup time

      Compatible with lithium battery

      Compatible with lithium battery

      Inverter efficiency up to 94%

      Inverter efficiency up to 94%

      MPPT efficiency up to 98%

      MPPT efficiency up to 98%

      Remote monitoring and control via NOVA

      Remote monitoring and control via NOVA

      Low self-consumption

      Low self-consumption

      Harmonic distortion<2%

      Harmonic distortion<2%

      Equalization charging function

      Equalization charging function

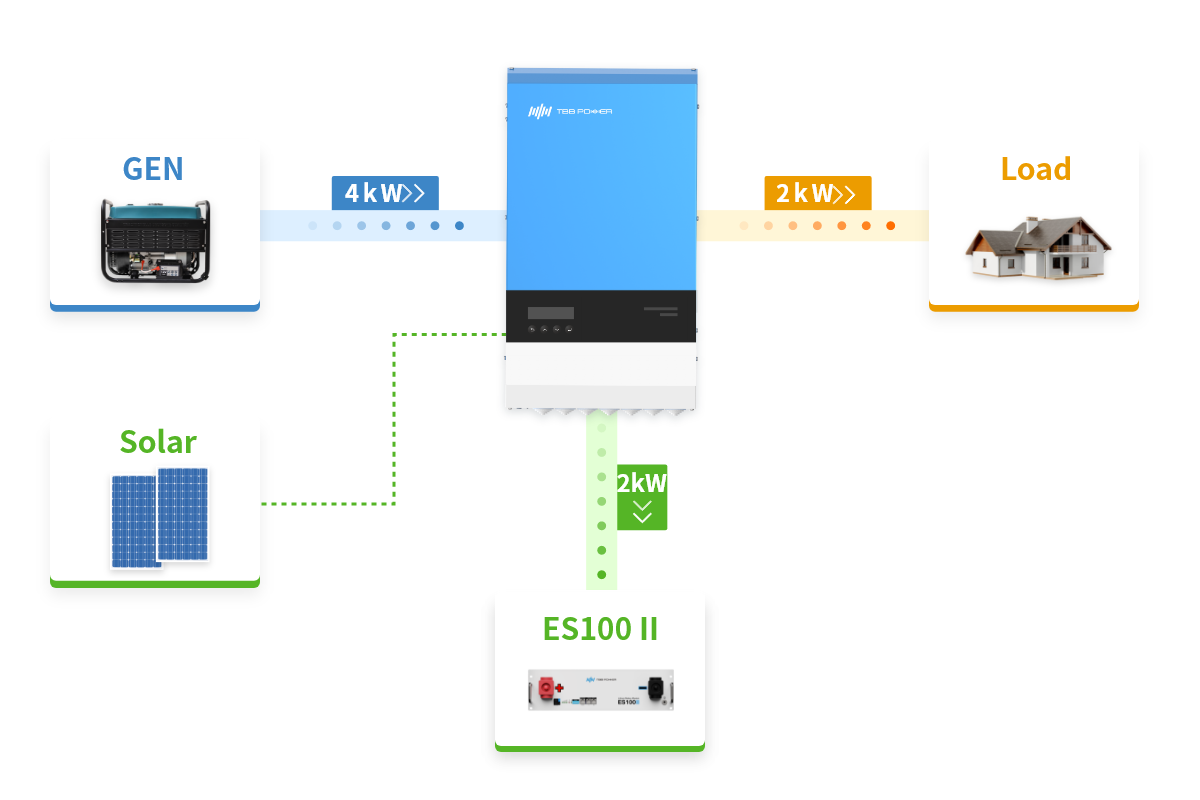

      Power Control maximizes the use of limited AC power and protect it from overload

      Power Control: maximizes the use of limited AC power and protect it from overload

      RiiO Sun can automatically adjust its charging current by taking loads into account, and only use the surplus current to charge the battery to avoid overload to the limited AC source. Thus, RiiO Sun can also keep generators running at their optimum power level.

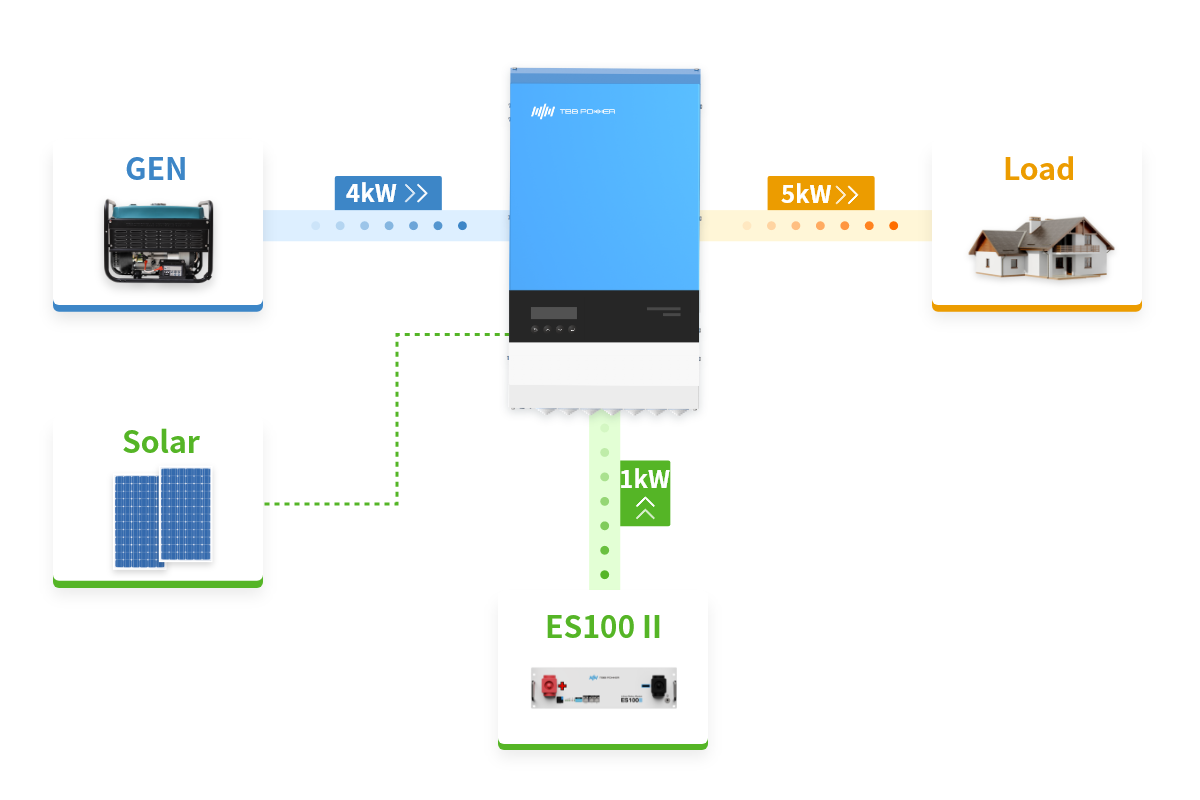

      Power Assist enables limited AC source to power heavy loads

      Power Assist: enables limited AC source to power heavy loads

      When the load keeps increasing and exceeds what the limited AC source can carry, RiiO Sun will discharge the battery to supply power to compensate the insufficient part of the limited AC source. When the load reduces, the spare power will be used to recharge the battery.

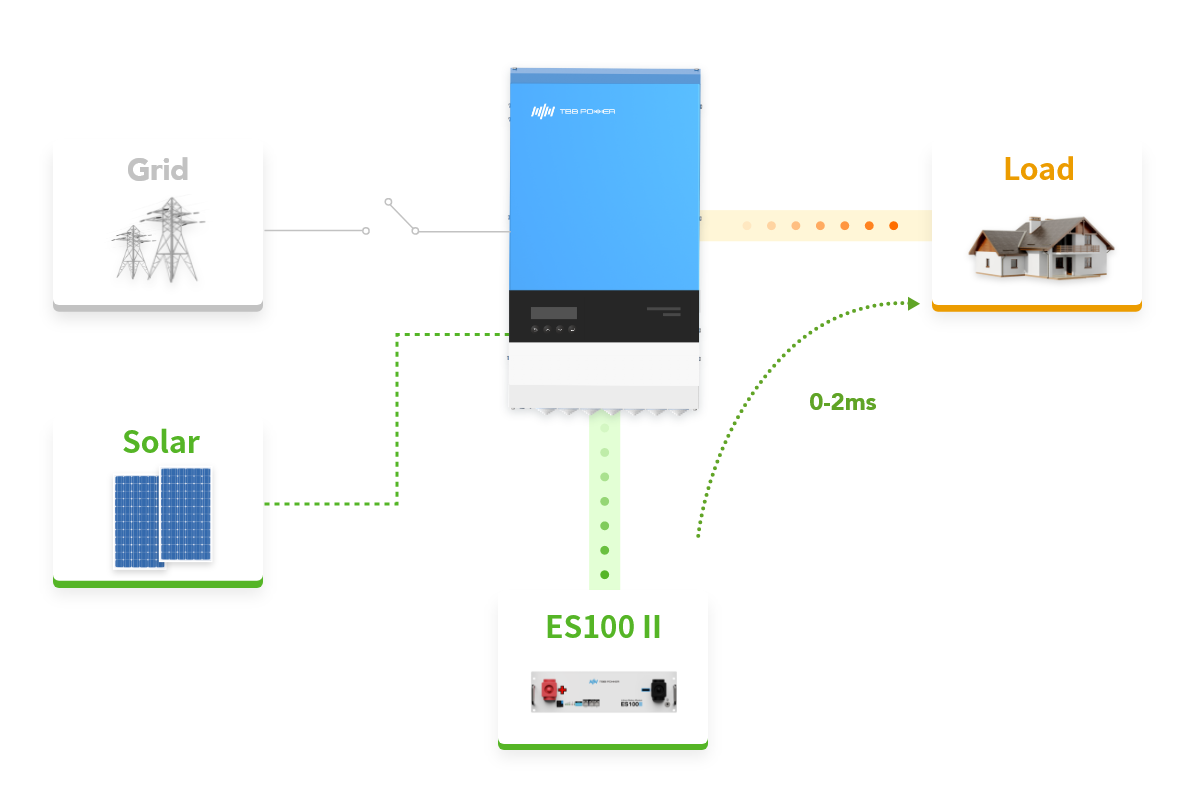

      Uninterruptible AC power (UPS function)

      Uninterruptible AC power (UPS function)

      When the produced solar energy is more than needed, the RiiO Sun will use the surplus to charge the batteries. In the event of a grid failure, or when the generator power is disconnected, the inverter within the RiiO Sun will be automatically activated and discharge the batteries to supply the connected loads. This happens seamlessly in 0ms that your sensitive or any other electronic equipment will continue to operate without interruption.

      Built-in ECO Mode to Prolong the Backup Time

      Built-in ECO Mode to Prolong the Backup Time

      ECO Mode is to reduce the output power of the inverter while maintaining the normal use of loads. When the battery capacity is insufficient or the SoC is in a low value, by setting the ECO Mode in the inverter, the power consumption of some specific loads can be reduced by about 45% at max, thereby prolonging the battery life.

      RiiO Sun solar inverter for off-grid applications

      RiiO Sun solar inverter product imageRiiO Sun solar inverter product imageRiiO Sun solar inverter product imageRiiO Sun solar inverter product imageRiiO Sun solar inverter product imageRiiO Sun solar inverter product image

      Specification

      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…

      Try Our Demo
