TBB Renewable provides comprehensive service and support to you to help you grow and achieve optimal satisfaction.

      Inverter Charger
      RiiO
      RiiO inverter charger for off-grid applications product features

      RiiO

      Inverter Charger

      RiiO

      2kVA-6kVA

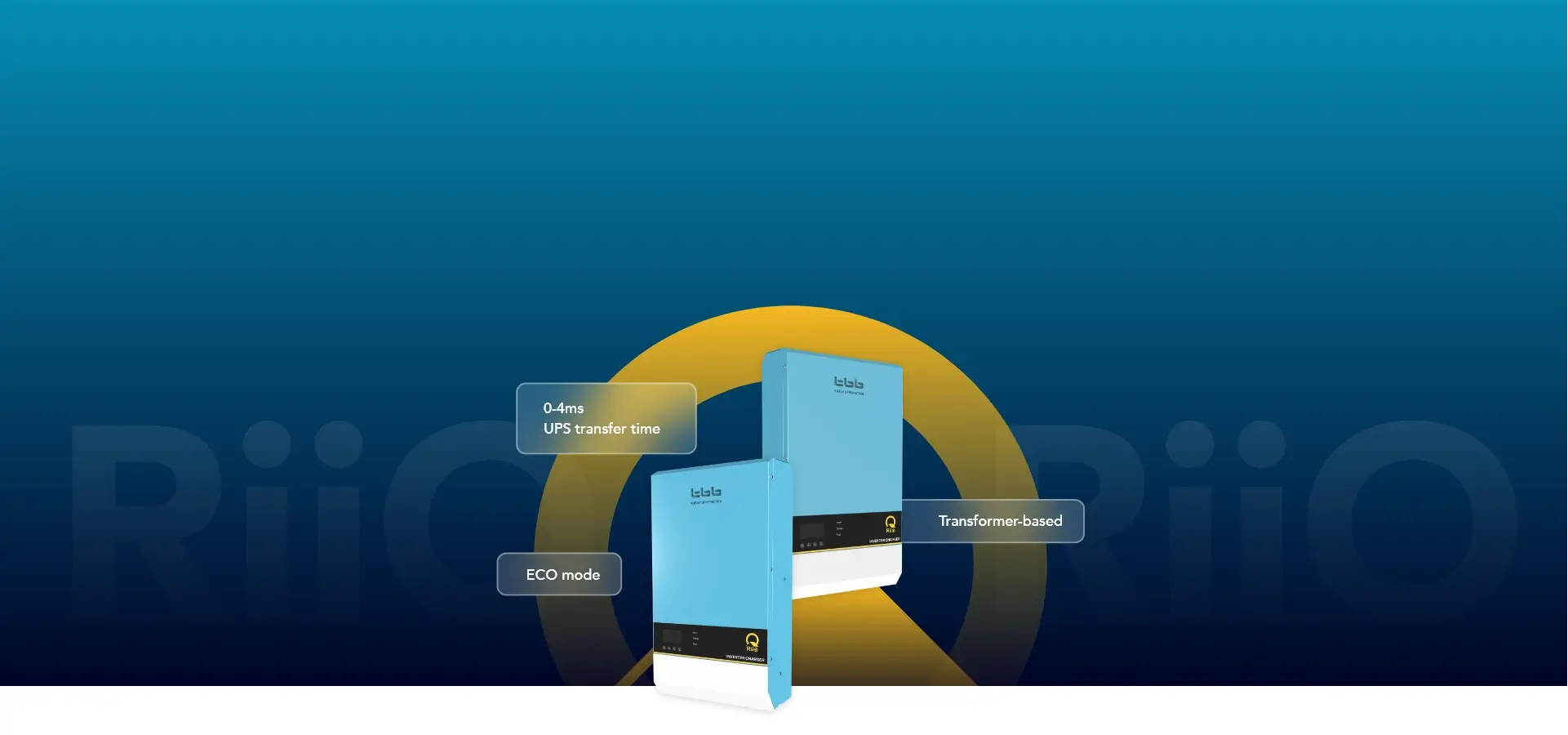

      RiiO is a new generation inverter charger designed for power shedding application. It integrates multiple functions including a high-performance true sine wave inverter, a powerful battery charger, and a high-speed automatic transfer switch, suitable for backup power applications.

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      Power assist & power control

      Power assist & power control

      0-4ms UPS transfer time for critical loads

      0-4ms UPS transfer time for critical loads

      Compatible with Lithium Battery

      Compatible with Lithium Battery

      Up to 94% inverter efficiency

      Up to 94% inverter efficiency

      ECO mode to prolong battery backup time

      ECO mode to prolong battery backup time

      Remote monitoring and control

      Remote monitoring and control

      Low Self-consumption

      Low Self-consumption

      Remote monitoring and control via NOVA APP & Web

      Remote monitoring and control via NOVA APP & Web

      Local monitoring and EMS via E4 LCD monitor

      Local monitoring and EMS via E4 LCD monitor

      Power assist and power control

      Power assist and power control

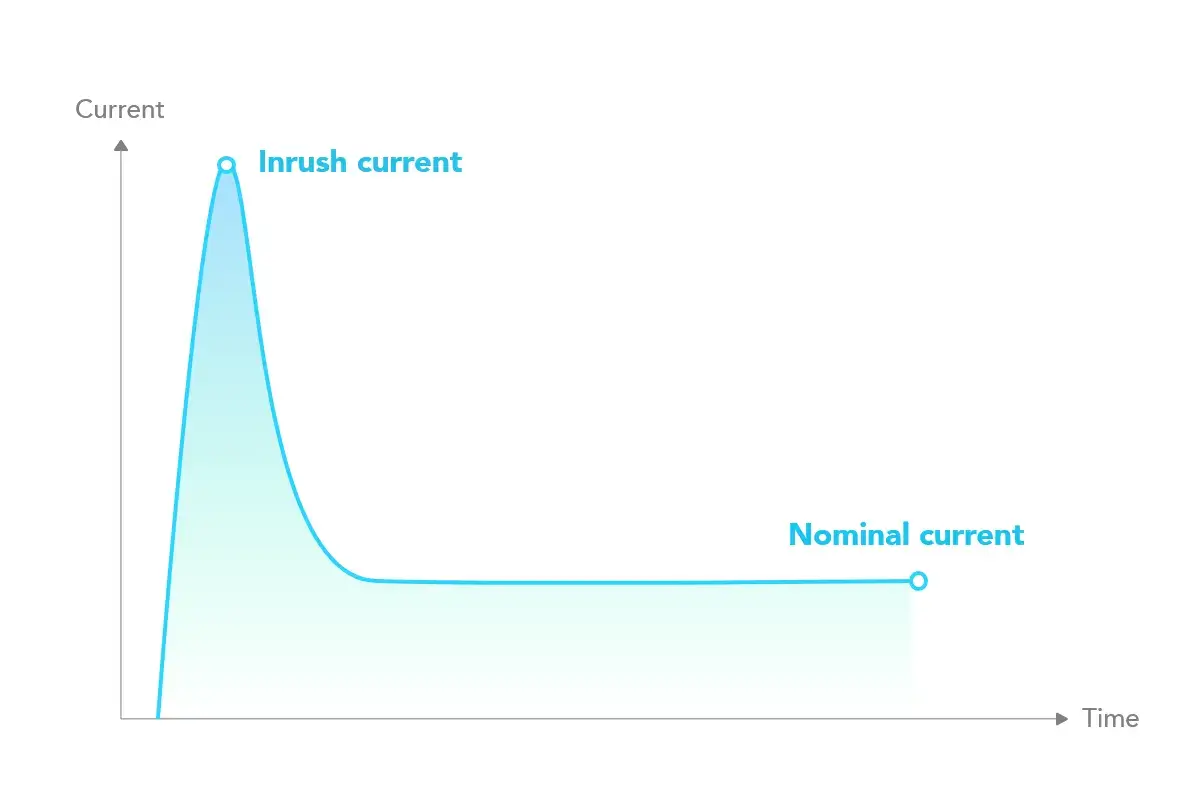

      300% Surge Capacity to Start up Motor Loads

      300% Surge Capacity to Start up Motor Loads

      The motor loads may draw several times their normal full-load current when first energized. The inrush currents to the inverter will be much higher than their steady-state currents. As a transformer-based inverter, RiiO inverter charger boasts sufficient surge capacity to deal with the inrush current when starting up the loads, to protect itself from breakdown.

      Power Control for Limited AC Source

      Power Control for Limited AC Source

      RiiO can automatically adjust its charging current by taking loads into account and only use the surplus current to charge batteries to protect limited AC sources from overload.

      Power Assist for Limited AC Sources

      Power Assist for Limited AC Sources

      When the load power keeps increasing and exceeds the limited AC source capability, RiiO will discharge the battery to compensate the insufficient part of the limited AC source. When the load power reduces, the spare energy will be used to recharge the battery.

      Optional ECO Mode to Prolong the Backup Time

      Optional ECO Mode to Prolong the Backup Time

      ECO Mode is to reduce the output power of the inverter while maintaining the normal use of loads when the battery capacity is insufficient or the SoC is in a low value, thus prolonging the battery backup time.

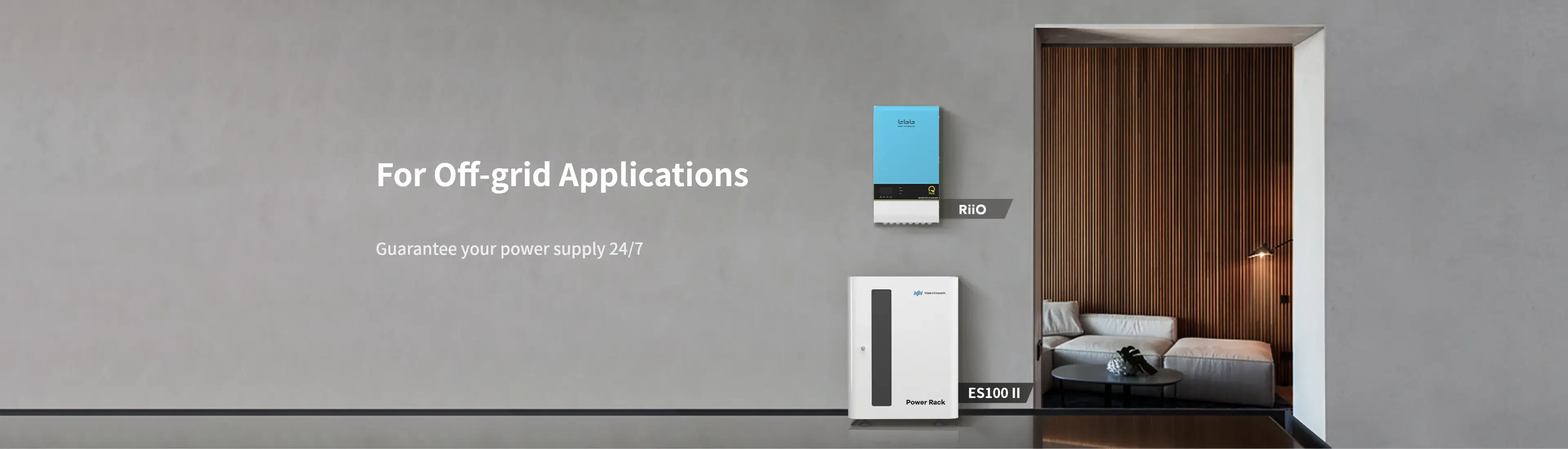

      RiiO inverter charger for off-grid applications

      RiiO inverter charger product imageRiiO inverter charger product imageRiiO inverter charger product imageRiiO inverter charger product imageRiiO inverter charger product image

      Specification

      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max. output power at 25°C (W)
        6000
      • Max AC charge current (A)
        70
      • Protection index
        IP21

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…

      Try Our Demo
