      Solar Hybrid Inverter
      Matrix II
      Download PDF
      Matrix II hybrid inverter product features

      Matrix II

      Solar Hybrid Inverter

      Matrix II

      5kW/8kW/10kW/15kW

      Matrix II is an advanced all-in-one transformer-based solar hybrid inverter for backup power, off-grid and ESS applications, featuring a high-efficiency inverter charger with a 600V MPPT solar charge controller (5.0S Lite model: 250V MPPT). The 10kW and 15kW models offer dual AC inputs and outputs for automatic connection to the active power source. While the smaller 5kW and 8kW models include a programmable smart port for flexible generator or secondary AC output configuration. Additionally, Matrix II supports maximizing energy self-consumption, grid feed-in for utility credits, retrofitting existing PV system, and optimizing bills with peak shaving and time-of-use strategies.

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      Built-in 600V MPPT (250V for 5.0S Lite model)

      Built-in 600V MPPT (250V for 5.0S Lite model)

      Multiple MPPT trackers

      Multiple MPPT trackers

      Programmable smart port (5kW & 8kW models)

      Programmable smart port (5kW & 8kW models)

      Two AC inputs & outputs (10kW & 15kW models)

      Two AC inputs & outputs (10kW & 15kW models)

      Parallel and three-phase up to 9 units

      Parallel and three-phase up to 9 units

      ESS capability

      ESS capability

      0ms UPS transfer time for critical loads

      0ms UPS transfer time for critical loads

      AGS function for generator control

      AGS function for generator control

      Power assist & power control

      Power assist & power control

      Local monitoring and EMS via E4

      Local monitoring and EMS via E4

      Remote monitoring and control via NOVA

      Remote monitoring and control via NOVA

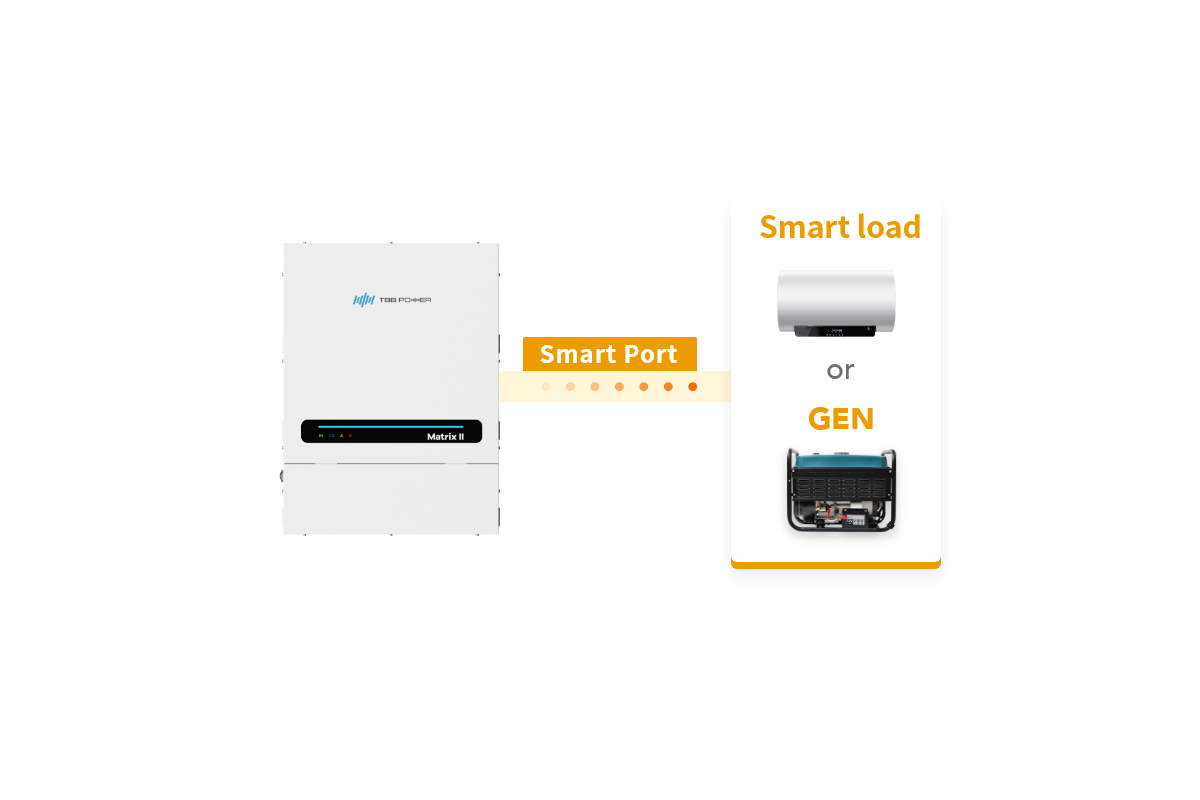

      A programmable smart port (5kW & 8kW Models)

      A programmable smart port (5kW & 8kW Models)

      Built-in a programmable smart port for generator input or power normal loads. When programmed as generator input, it can provide two AC inputs for the system; When it is programmed as an AC out 2 for connecting normal loads, its on/off can be controlled based on the grid condition, battery SoC/Voltage, to manage loads in a smart way.

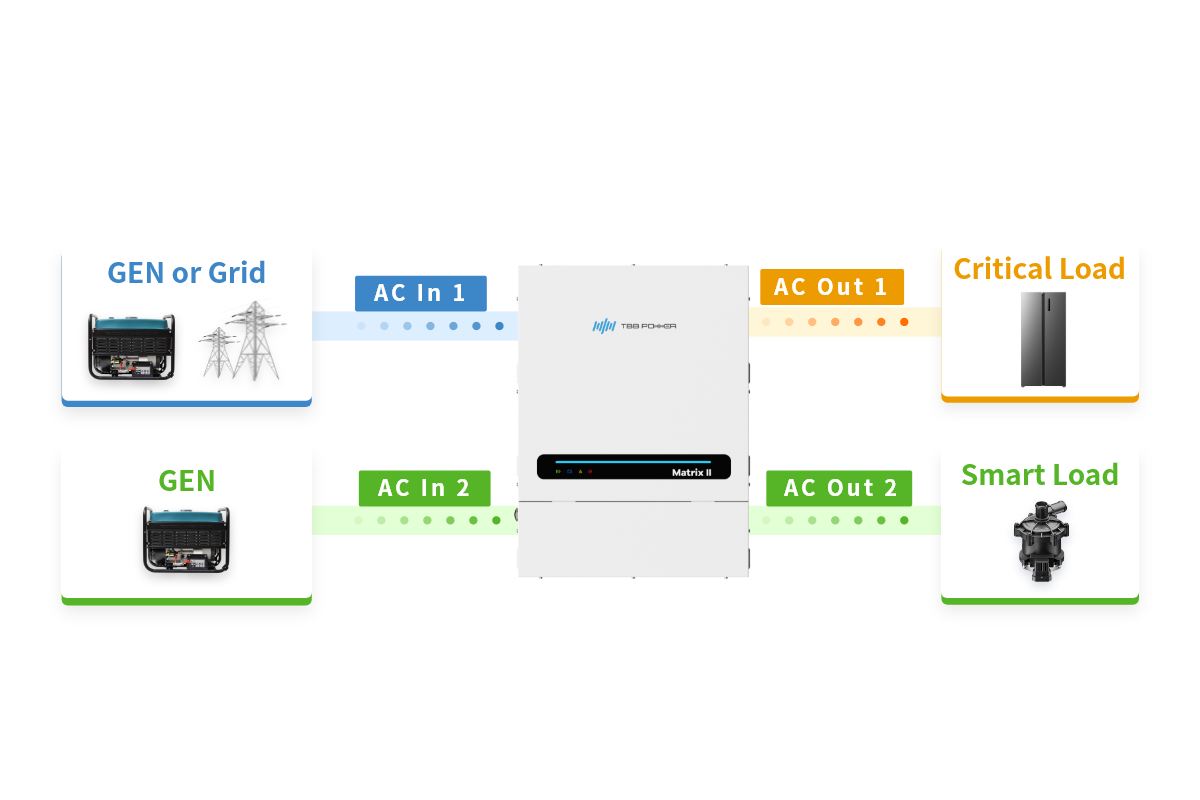

      Two AC inputs & Two AC outputs (10kW & 15kW Models)

      Two AC inputs & Two AC outputs (10kW & 15kW Models)

      Boasting two AC inputs, Matrix II (10kW & 15kW Models) can connect to the grid and generator or two generators simultaneously. It will automatically connect to the active AC source to ensure an uninterruptible power supply. With Two AC outputs, Matrix II can manage loads in a smart way.

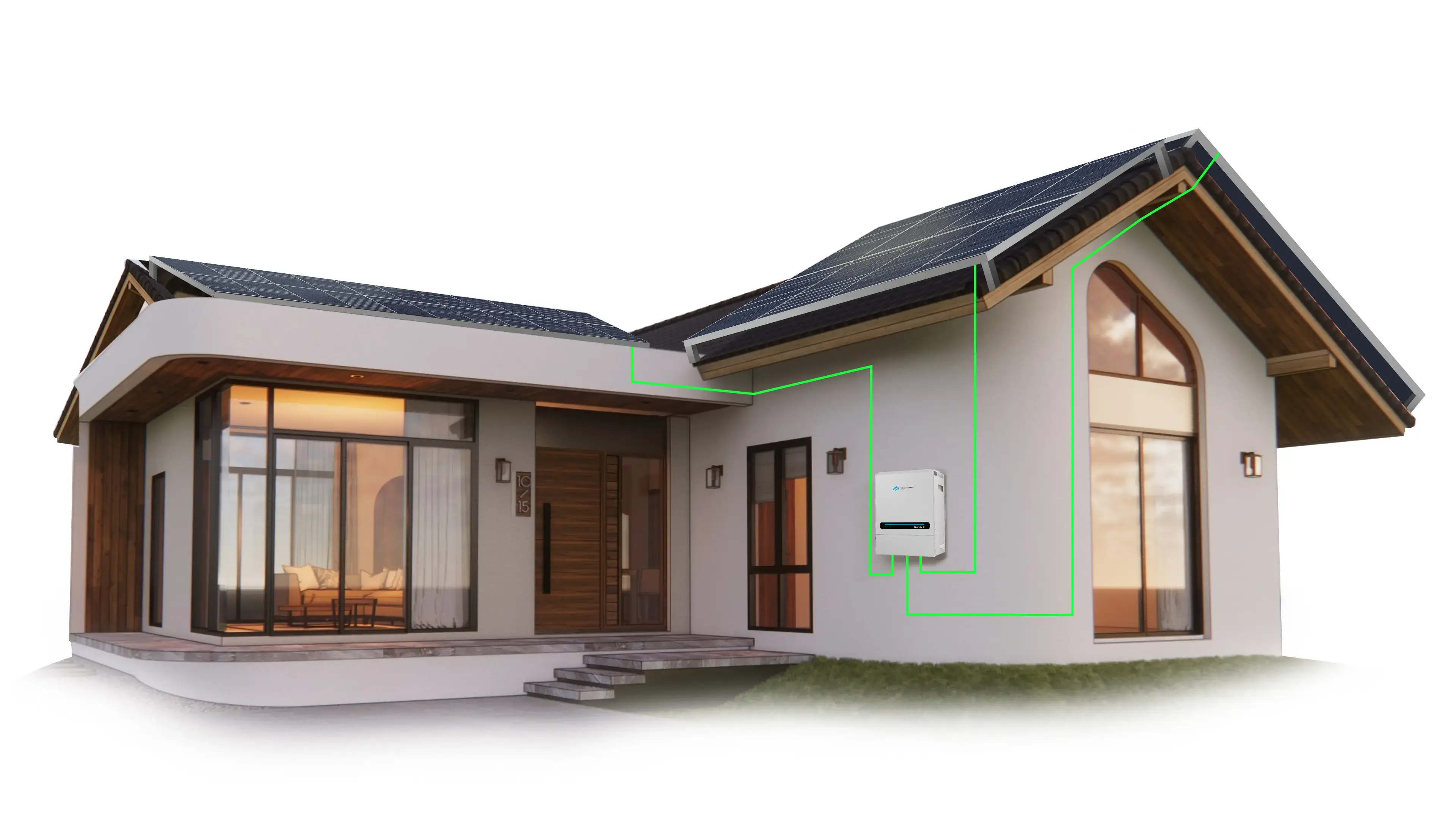

      Multiple MPPT Trackers

      Multiple MPPT Trackers

      Built-in multiple MPPT trackers, providing greater system design flexibility, enabling multi- directional installation of rooftop solar panels.

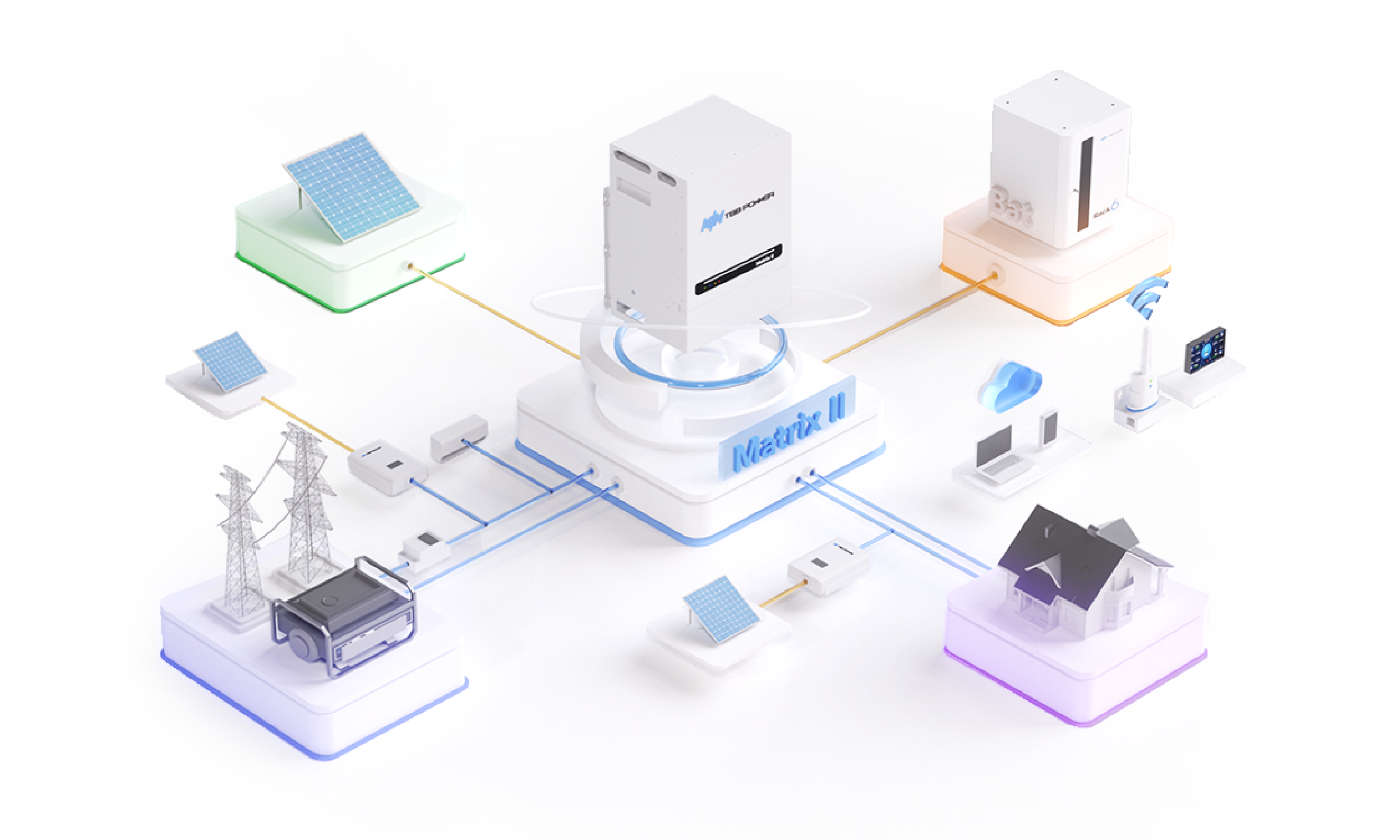

      ESS Capability

      ESS Capability

      With ESS capability, Matrix II is the key component in an energy storage system. Built-in with MPPT solar charge controller and working with grid-tie PV inverter, it can be used for the following applications: maximizing self-consumption, peak shaving, retrofitting existing grid-tie systems, and guaranteeing backup power.

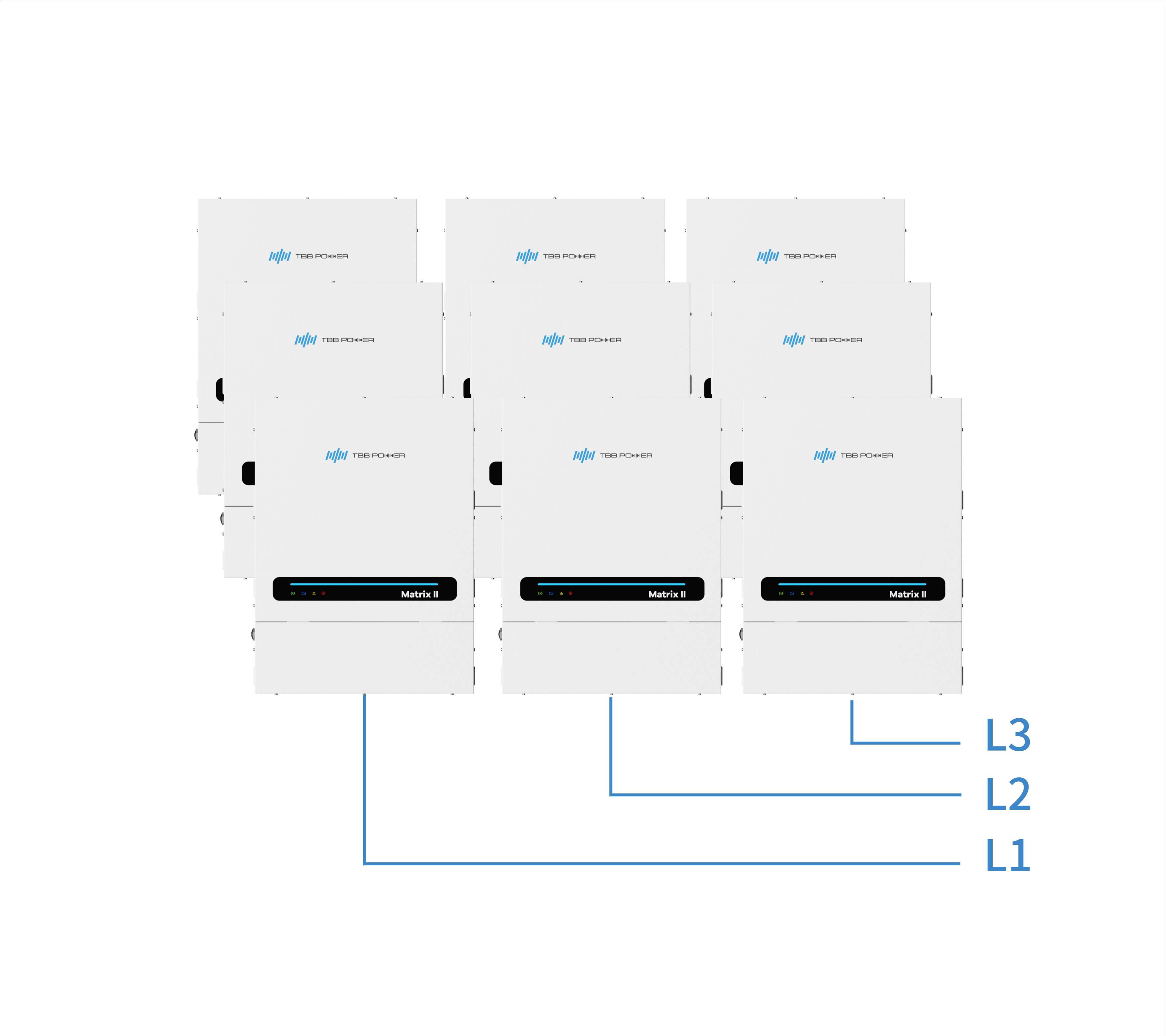

      Parallel & Three-phase Operation up to 9 units

      Parallel & Three-phase Operation up to 9 units

      Matrix II supports parallel and three-phase operation up to 9 units to achieve higher power output (up to 135kW). You can start with the comprehensive system or a smaller solution and gradually expand it, depending on what best suits your needs and budget.

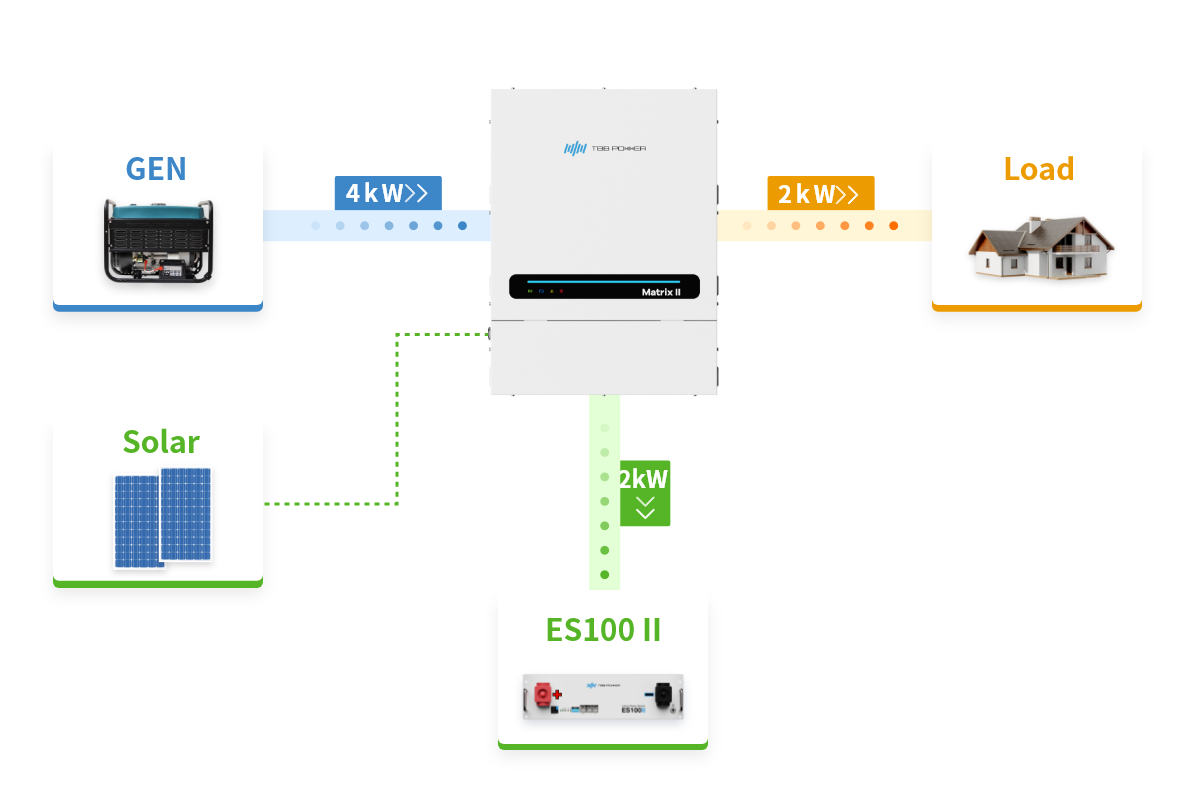

      Power Control: maximizes the use of limited AC power and protect it from overload

      Power Control: maximizes the use of limited AC power and protect it from overload

      Matrix II can automatically adjust its charging current by taking loads into account and only using the surplus current to charge the battery to avoid overload to the limited AC source. Thus, Matrix II can also keep generators running at their optimum power level.

      Power Assist: enables limited AC source to power heavy loads

      Power Assist: enables limited AC source to power heavy loads

      When the load keeps increasing and exceeds what the limited AC source can carry, Matrix II will discharge the battery to supply power to compensate for the insufficient part of the limited AC source. When the load reduces, the spare power will be used to recharge the battery.

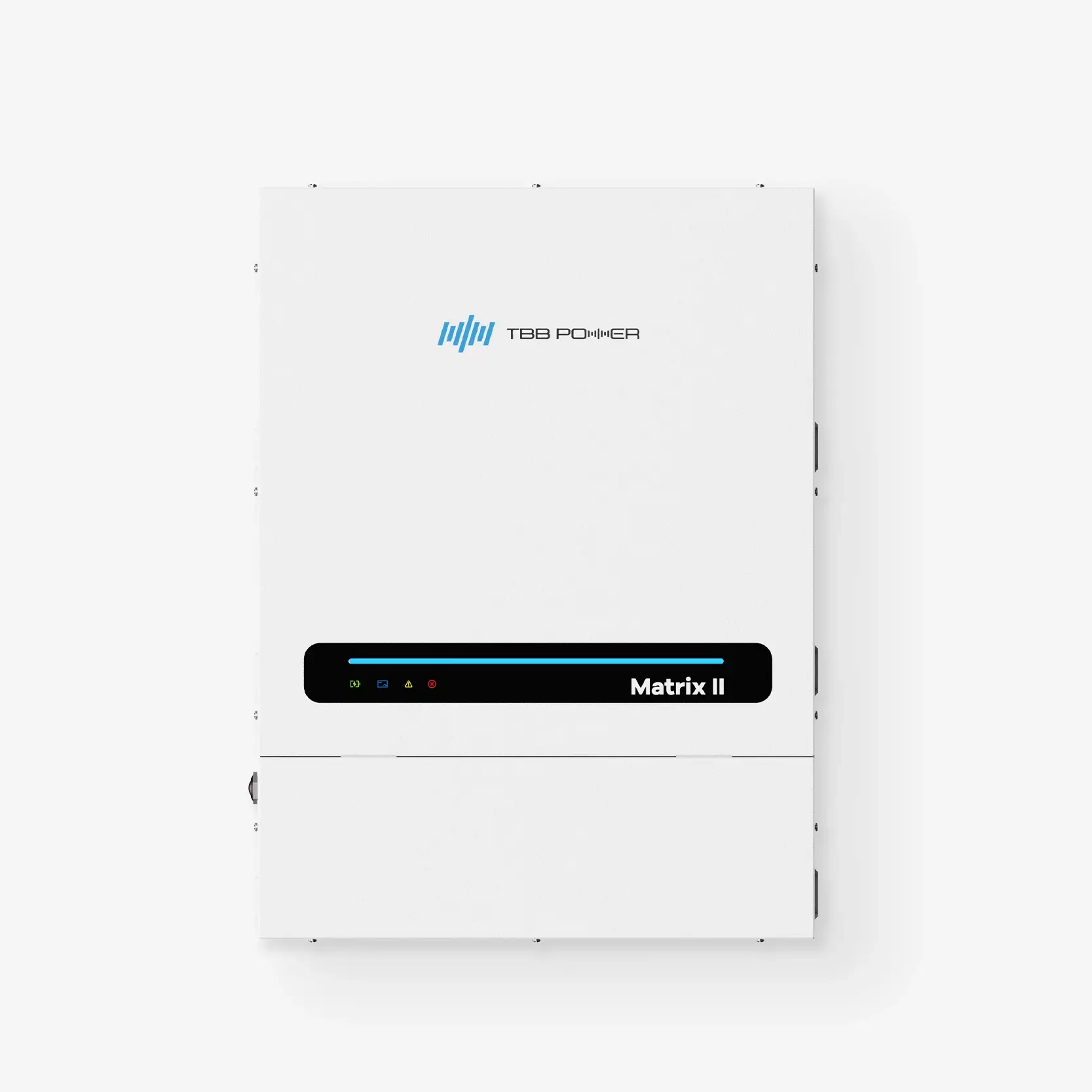

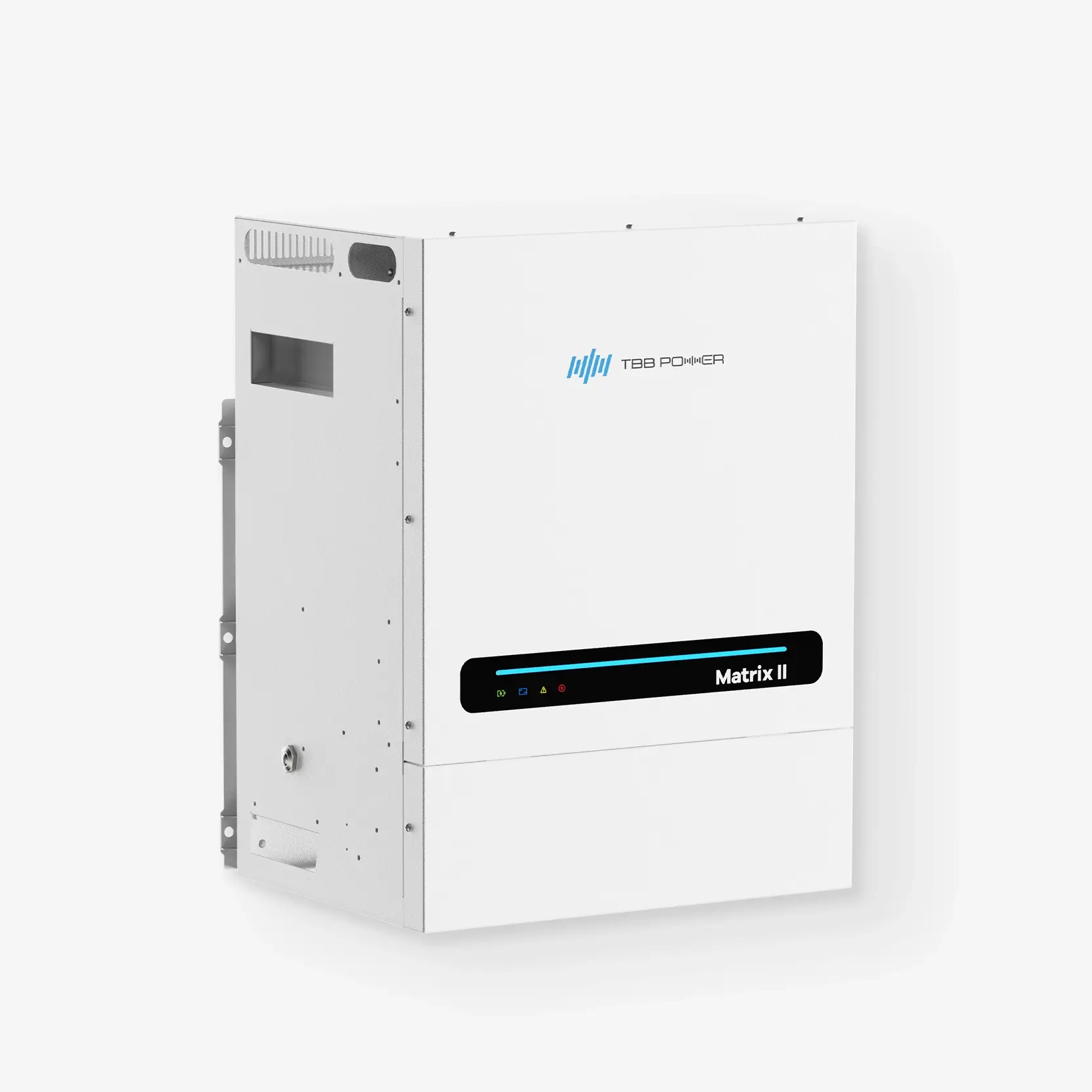

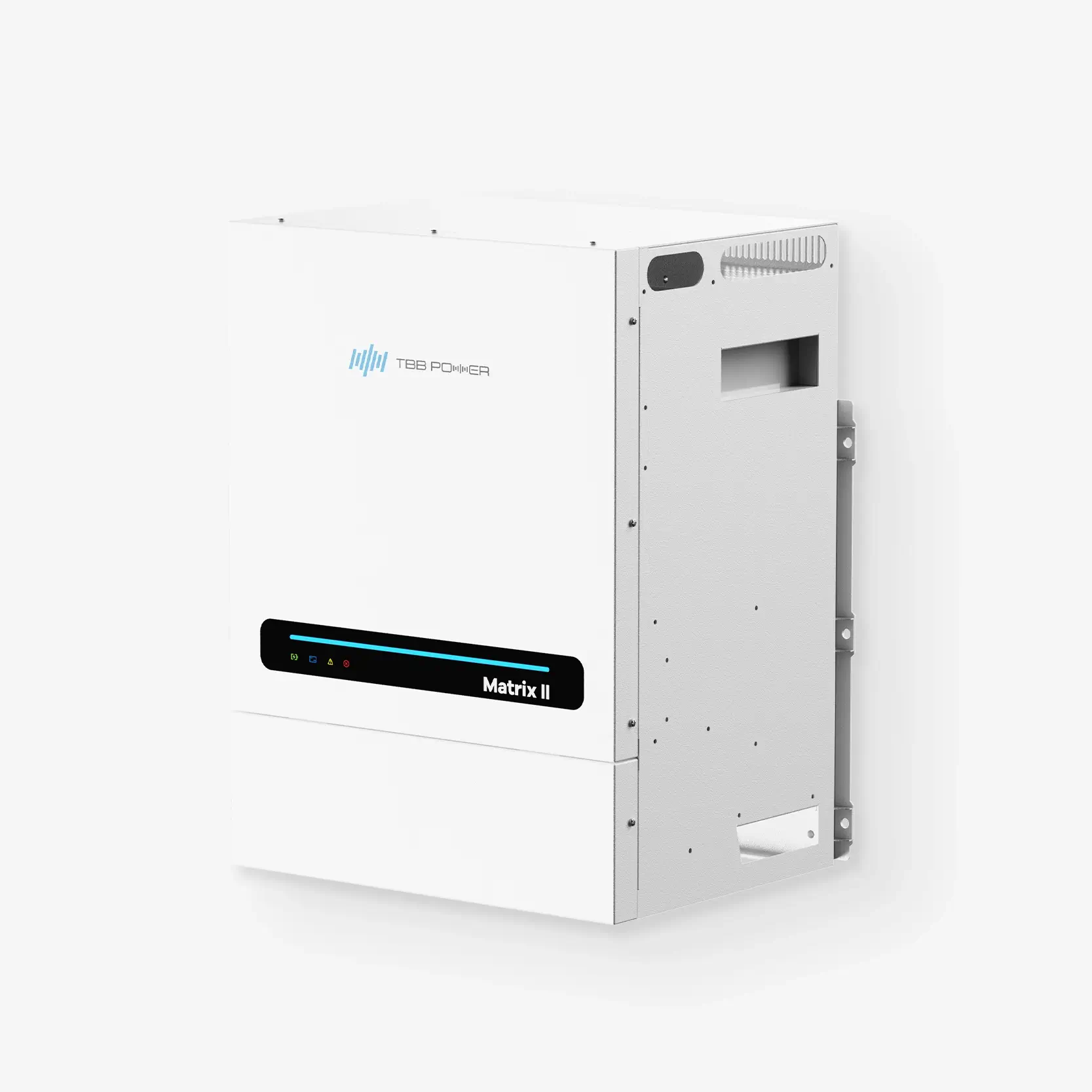

      Matrix II hybrid inverter for off-grid and ESS applications

      Matrix II hybrid inverter product imageMatrix II hybrid inverter product imageMatrix II hybrid inverter product image

      Specification

      • Matrix II 5.0S Lite

      • Matrix II 5.0S

      • Matrix II 8.0S

      • Matrix II 10.0S

      • Matrix II 15.0S

      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Peak Power (W)
        15000
      • Max AC charge current (A)
        70
      • Number of MPPT trackers
        2
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Peak Power (W)
        15000
      • Max AC charge current (A)
        70
      • Number of MPPT trackers
        2
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Peak Power (W)
        15000
      • Max AC charge current (A)
        70
      • Number of MPPT trackers
        2
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Peak Power (W)
        15000
      • Max AC charge current (A)
        70
      • Number of MPPT trackers
        2
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Peak Power (W)
        15000
      • Max AC charge current (A)
        70
      • Number of MPPT trackers
        2
      • Protection Index
        IP21

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
