      Inverter Charger
      Kinergier Pro CK
      Kinergier Pro CK inverter chargerfor off-grid applications product features

      Kinergier Pro CK

      Inverter Charger

      Kinergier Pro CK

      4kW-8kW

      Kinergier Pro CK is a new generation inverter charger, combined with an inverter, battery charger, and transfer switch into one compact package, allowed to expand its system capacity from 4kW to 72kW through parallel and three phase operation. Featuring 0ms UPS transfer time, it is an ideal inverter for powering mission-critical loads in various types of off grid systems including AC Coupled PV system, DC Coupled PV system and generator hybrid system.

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      AC Coupling, DC Coupling or both

      AC Coupling, DC Coupling or both

      Parallel and three-phase up to 9 units

      Parallel and three-phase up to 9 units

      Two AC outputs for load management

      Two AC outputs for load management

      0-2ms UPS transfer time for critical loads

      0-2ms UPS transfer time for critical loads

      Built-in AGS function for generator control

      Built-in AGS function for generator control

      Power assist & power control

      Power assist & power control

      Compatible with lithium battery

      Compatible with lithium battery

      Inverter efficiency up to 96%

      Inverter efficiency up to 96%

      Remote monitoring and control

      Remote monitoring and control

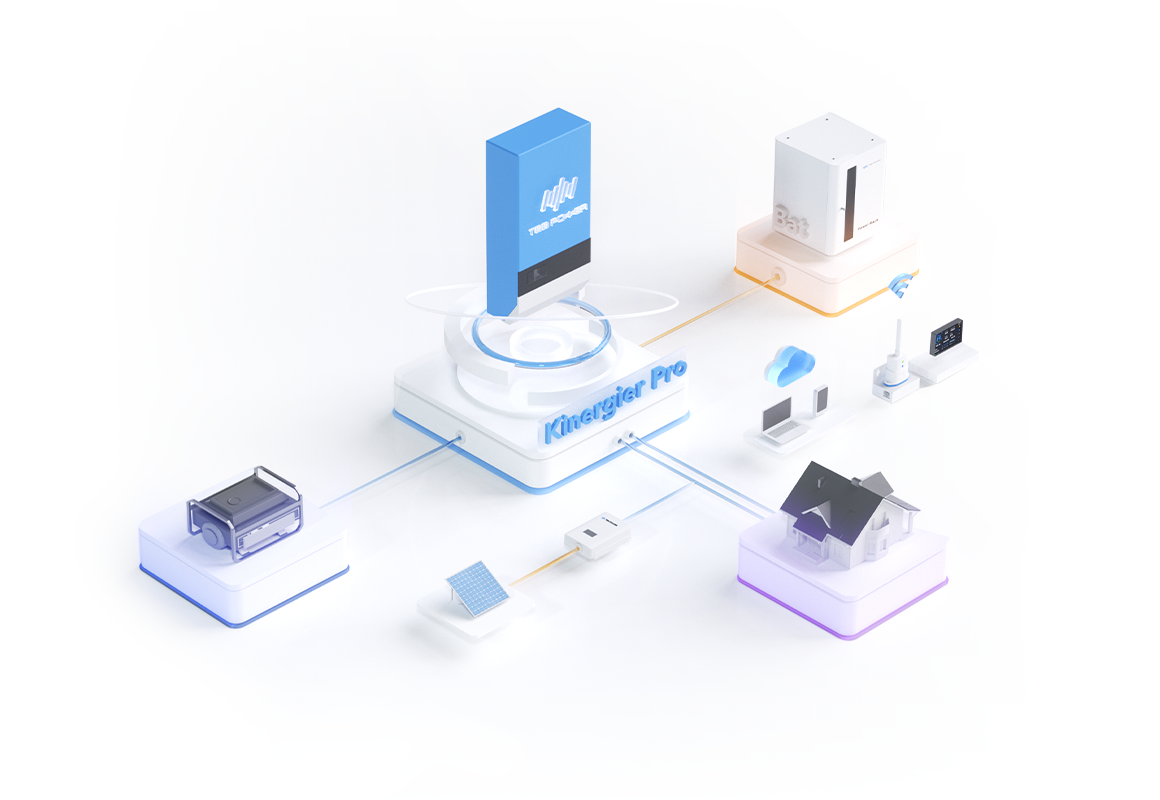

      Support AC Coupling

      Support AC Coupling

      In addition to DC Coupled Solar, Kinergier Pro also supports AC Coupled Solar operation. PV power is used to power the loads directly in a higher efficiency, then to charge the batteries. Kinergier Pro can also regulate the output power of a Grid-tie PV Inverter to prevent overcharging the batteries. Compared to a DC Coupled PV system, this AC-coupled PV system can better satisfy your self-consumption needs due to its bigger PV capacity.

      Power Control for Limited AC Source

      Power Control: maximizes the use of limited AC power and protects it from overload

      Kinergier Pro CK can automatically adjust its charging current by taking loads into account, and only use the surplus current to charge the battery to avoid overload to the limited AC source. Thus, Kinergier Pro can also keep generators running at their optimum power level.

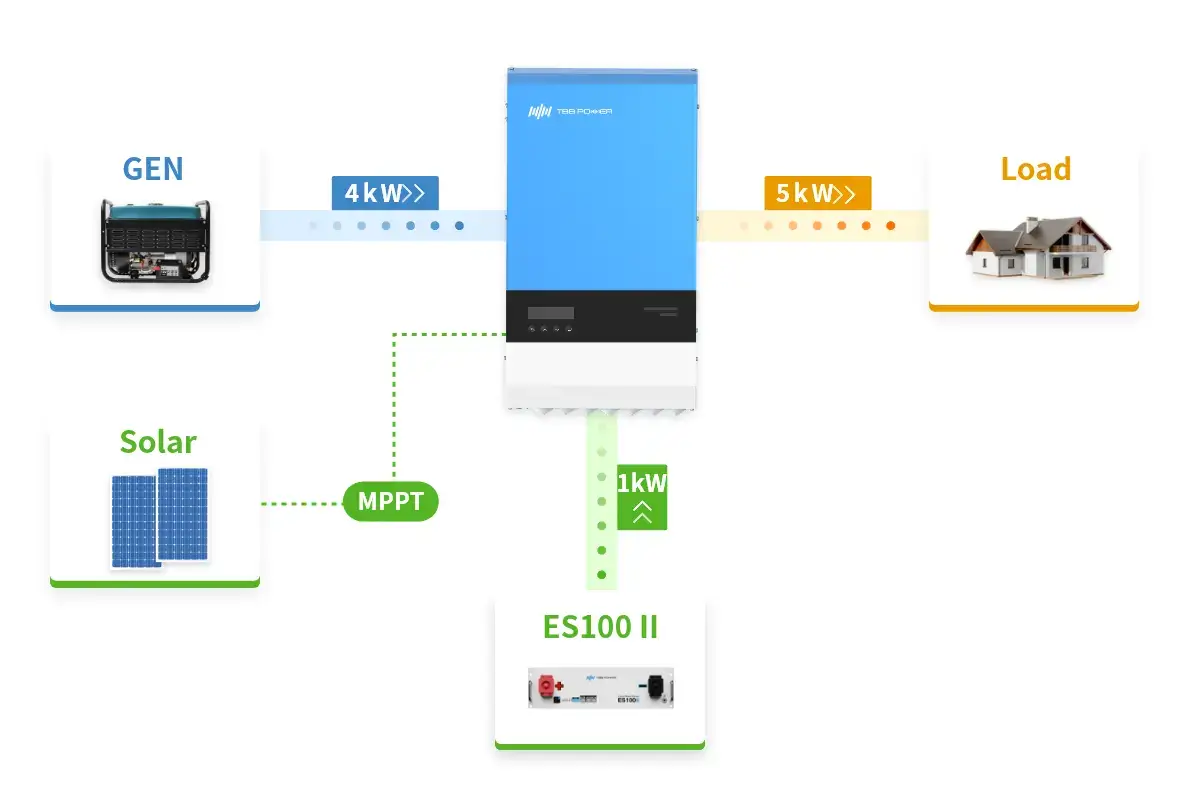

      Power Assist for Limited AC Sources

      Power Assist: enables limited AC source to power heavy loads

      When the load keeps increasing and exceeds what the limited AC source can carry, Kinergier Pro will discharge the battery to supply power to compensate the insufficient part of the limited AC source. When the load reduces, the spare power will be used to recharge the battery.

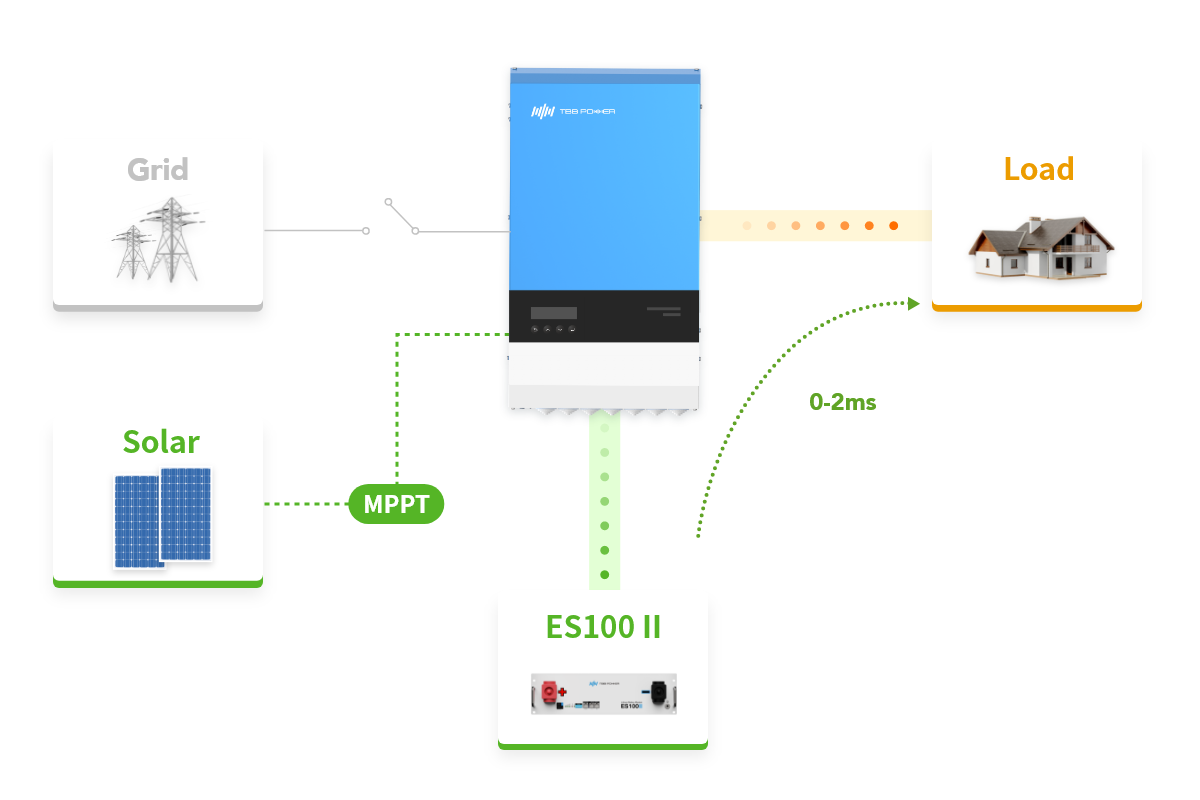

      Uninterruptible AC power (UPS function)

      Uninterruptible AC power (UPS function)

      When the produced solar energy is more than needed, the Kinergier Pro will use the surplus to charge the batteries. In the event of a grid failure, or when the generator power is disconnected, the inverter within the Kinergier Pro will be automatically activated and discharge the batteries to supply the connected loads. This happens seamlessly in 0-2ms that your sensitive or any other electronic equipment will continue to operate without interruption.

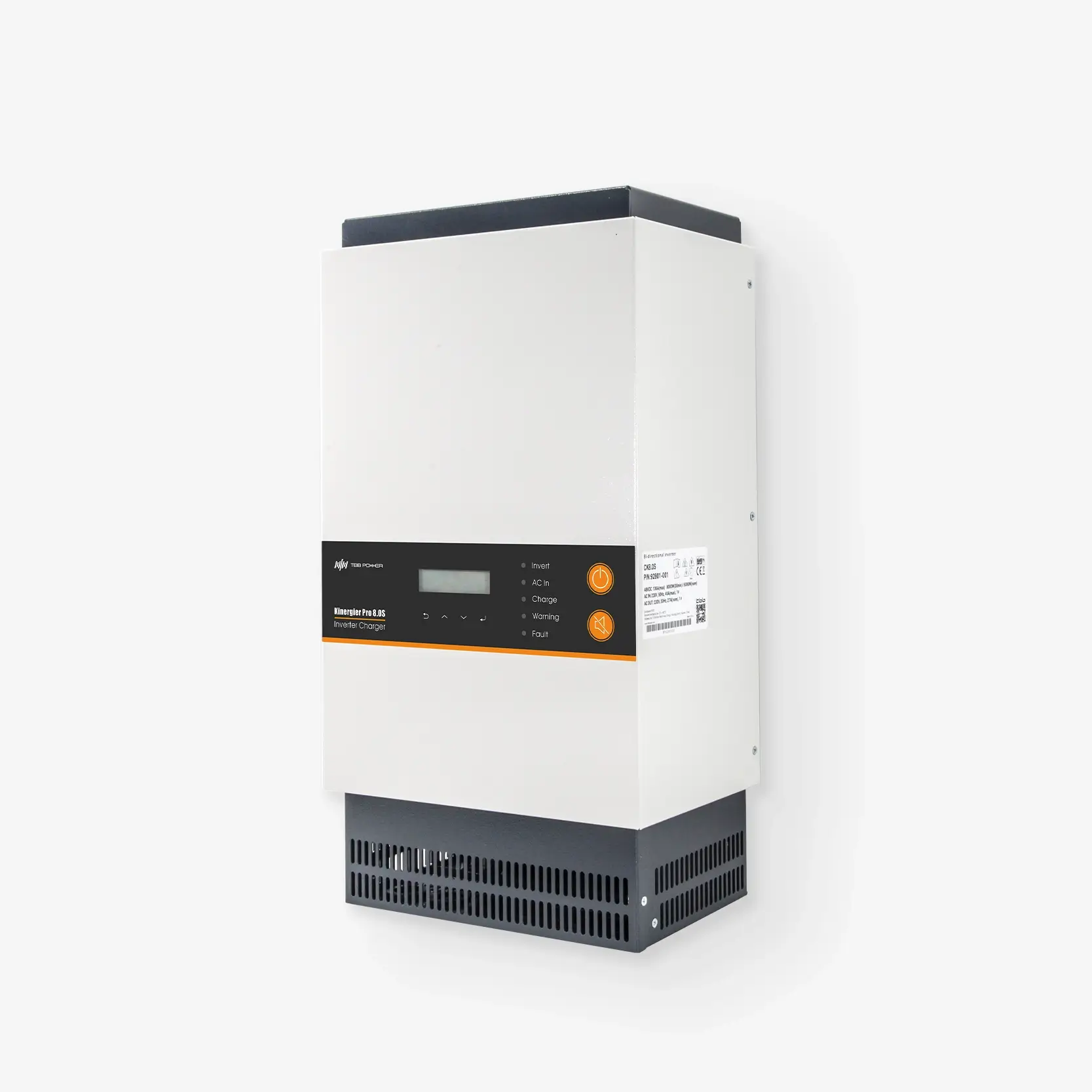

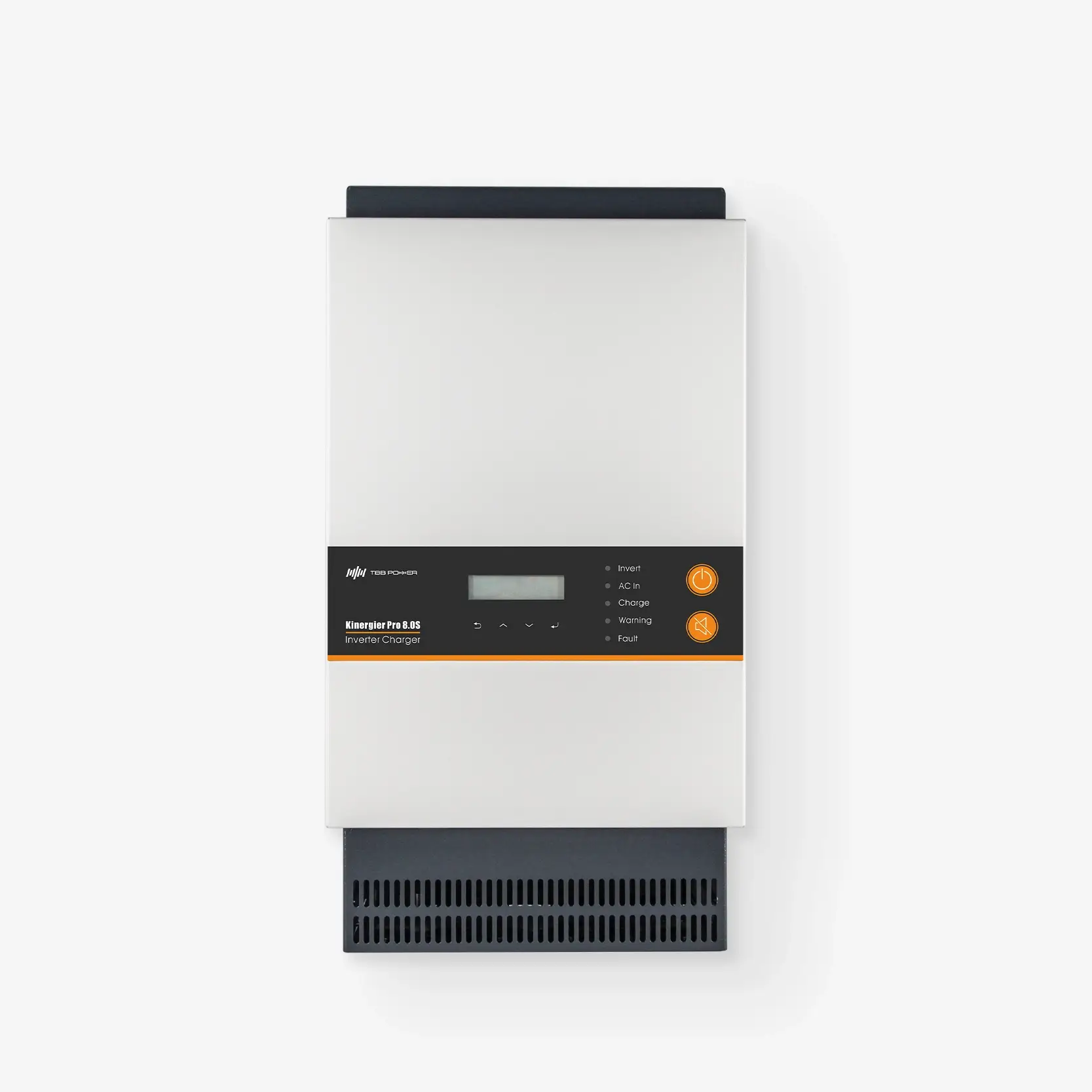

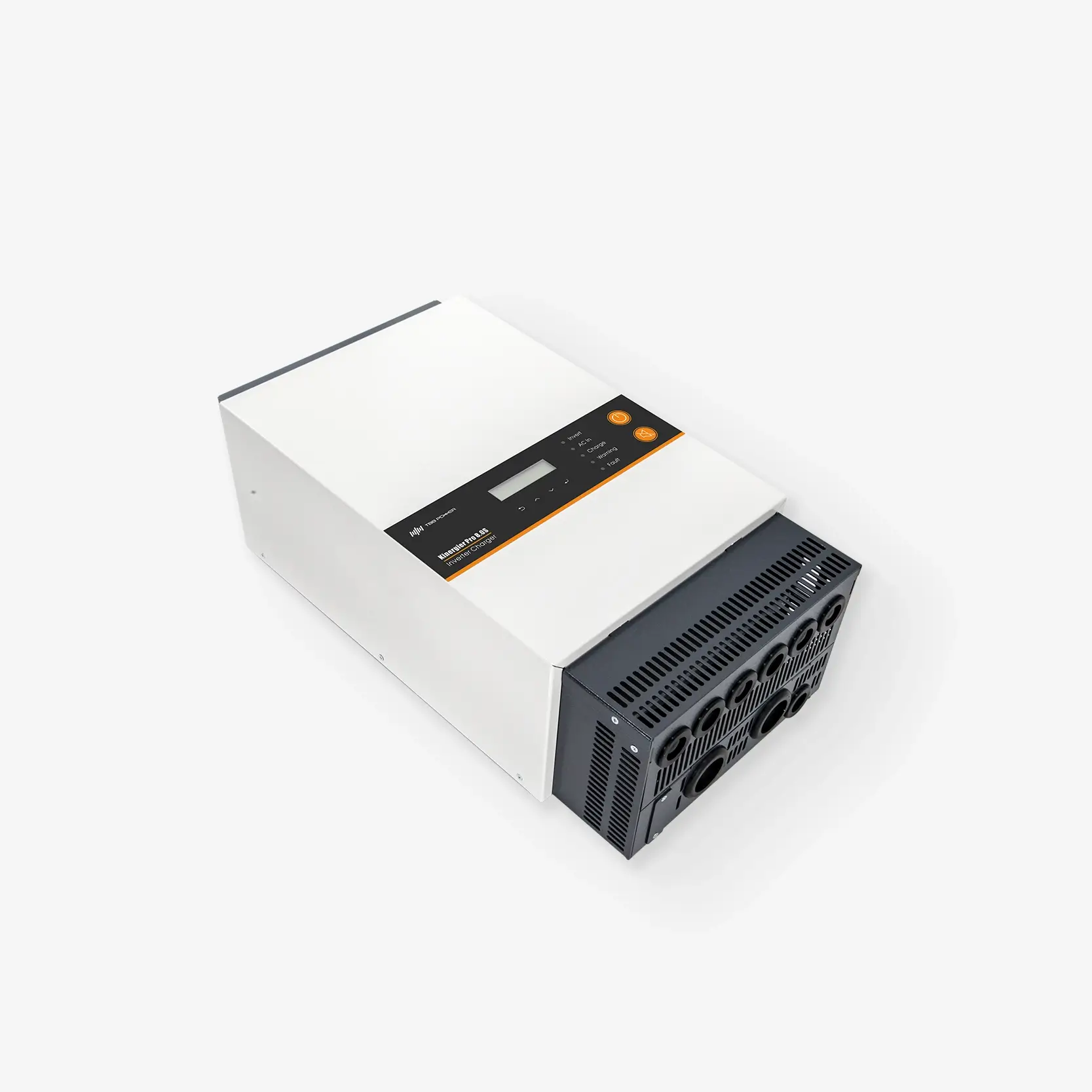

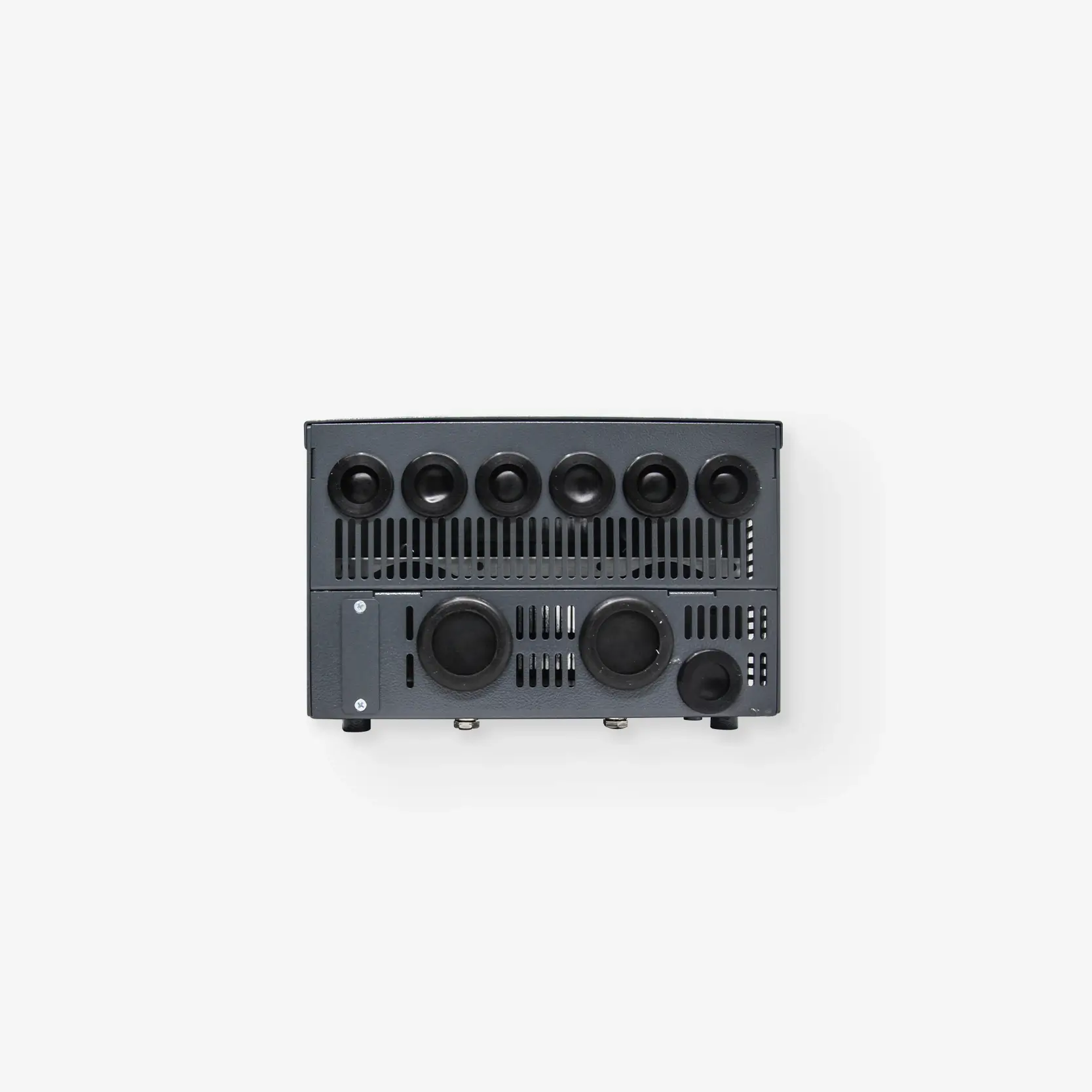

      Kinergier Pro CK inverter charger for off-grid applications

      Kinergier Pro CK inverter charger product imageKinergier Pro CK inverter charger product imageKinergier Pro CK inverter charger product imageKinergier Pro CK inverter charger product imageKinergier Pro CK inverter charger product image

      Specification

      • Nominal battery voltage (VDC)
        48
      • Peak power (30min) (W)
        8000
      • Max AC charge current (A)
        110
      • Protection index
        IP20
      • Nominal battery voltage (VDC)
        48
      • Peak power (30min) (W)
        8000
      • Max AC charge current (A)
        110
      • Protection index
        IP20
      • Nominal battery voltage (VDC)
        48
      • Peak power (30min) (W)
        8000
      • Max AC charge current (A)
        110
      • Protection index
        IP20
      • Nominal battery voltage (VDC)
        48
      • Peak power (30min) (W)
        8000
      • Max AC charge current (A)
        110
      • Protection index
        IP20
      • Nominal battery voltage (VDC)
        48
      • Peak power (30min) (W)
        8000
      • Max AC charge current (A)
        110
      • Protection index
        IP20
      • Nominal battery voltage (VDC)
        48
      • Peak power (30min) (W)
        8000
      • Max AC charge current (A)
        110
      • Protection index
        IP20

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
