      Hybrid Inverter
      Ingesola (Single Phase)
      Download PDF
      Ingesola single-phase hybrid inverter product features

      Ingesola (Single Phase)

      Hybrid Inverter

      Ingesola (Single Phase)

      3kW/5kW/8kW

      TBB Ingesola S series are single-phase hybrid inverters for residential hybrid ESS, to cut electricity cost and reliance on the grid. Suitable for low voltage battery (48V) systems, it features a 1.6 max DC/AC ratio and 2 MPPT trackers for efficient solar integration. It supports both off-grid and grid-tie operations. It offers a smart port for configurations like secondary AC output, AC Coupling for retrofitting, generator input for backup power, and EV charging with EV and V2G chargers. Ideal for optimizing self-consumption, the Ingesola series also includes an EMS for peak shaving with eight configurable time periods for charging and discharging, and has an IP65-rated design for durability in harsh environments.

      Can work with EV charger & V2G charger

      Can work with EV charger & V2G charger

      Two AC inputs or two AC outputs

      Two AC inputs or two AC outputs

      One programmable smart port

      One programmable smart port

      Parallel and three-phase up to 9 units

      Parallel and three-phase up to 9 units

      Support battery heterogeneity

      Support battery heterogeneity

      Built-in 2 MPPT trackers

      Built-in 2 MPPT trackers

      Support smart load management

      Support smart load management

      Built-in EMS

      Built-in EMS

      CAN, RS485 and DRM communication

      CAN, RS485 and DRM communication

      <2ms UPS transfer time

      <2ms UPS transfer time

      IP65 Rated

      IP65 Rated

      Remote monitoring and control via NOVA

      Remote monitoring and control via NOVA

      One Programmable Smart Port

      One Programmable Smart Port

      Equipped with a programmable smart port, it can support smart load management, generator input to realize two AC inputs, and connecting grid-tie inverter.

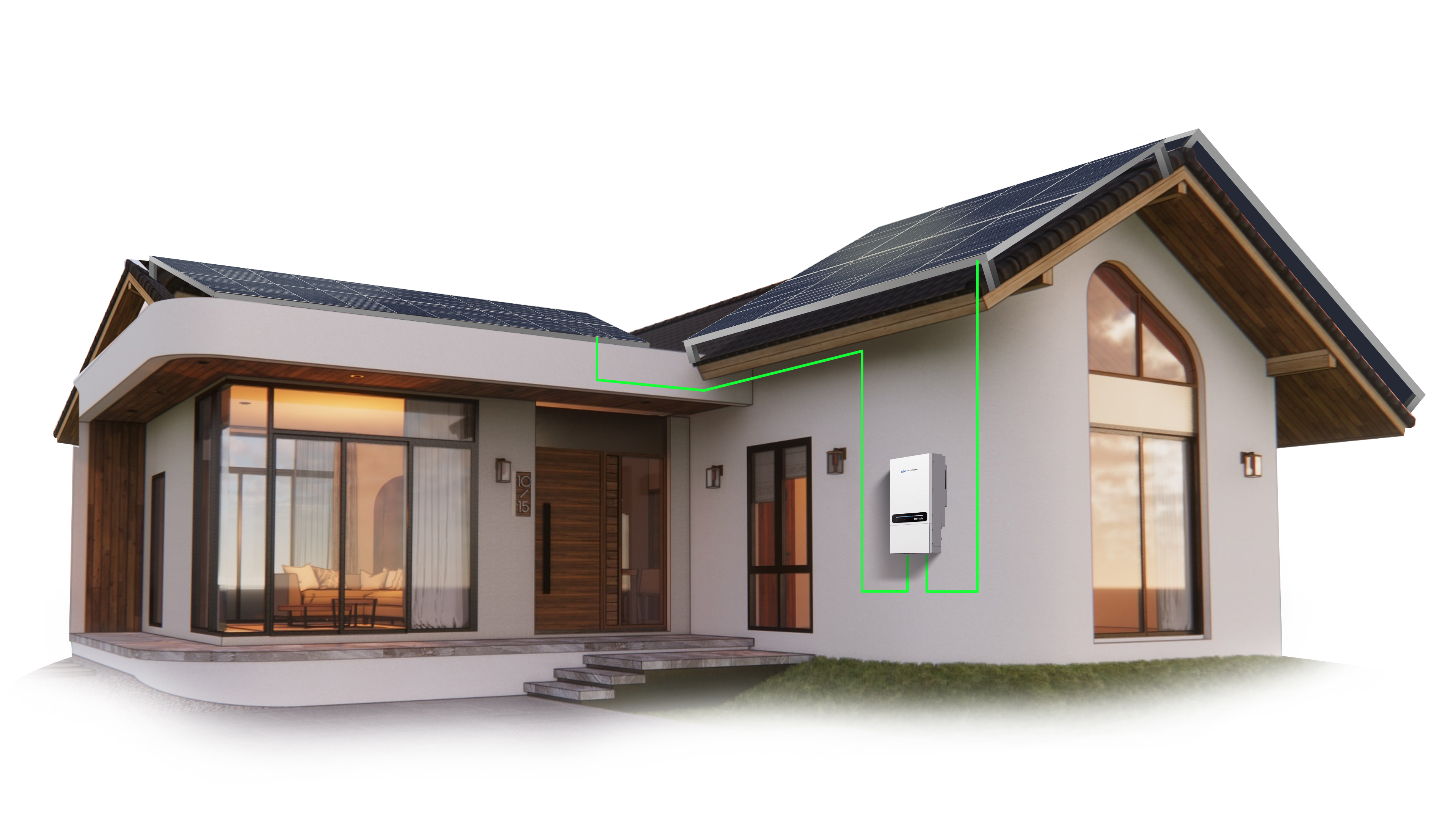

      2 MPPT Trackers

      2 MPPT Trackers

      2 MPPT trackers enable flexible bi-directional installation of solar panels for optimized energy yields.

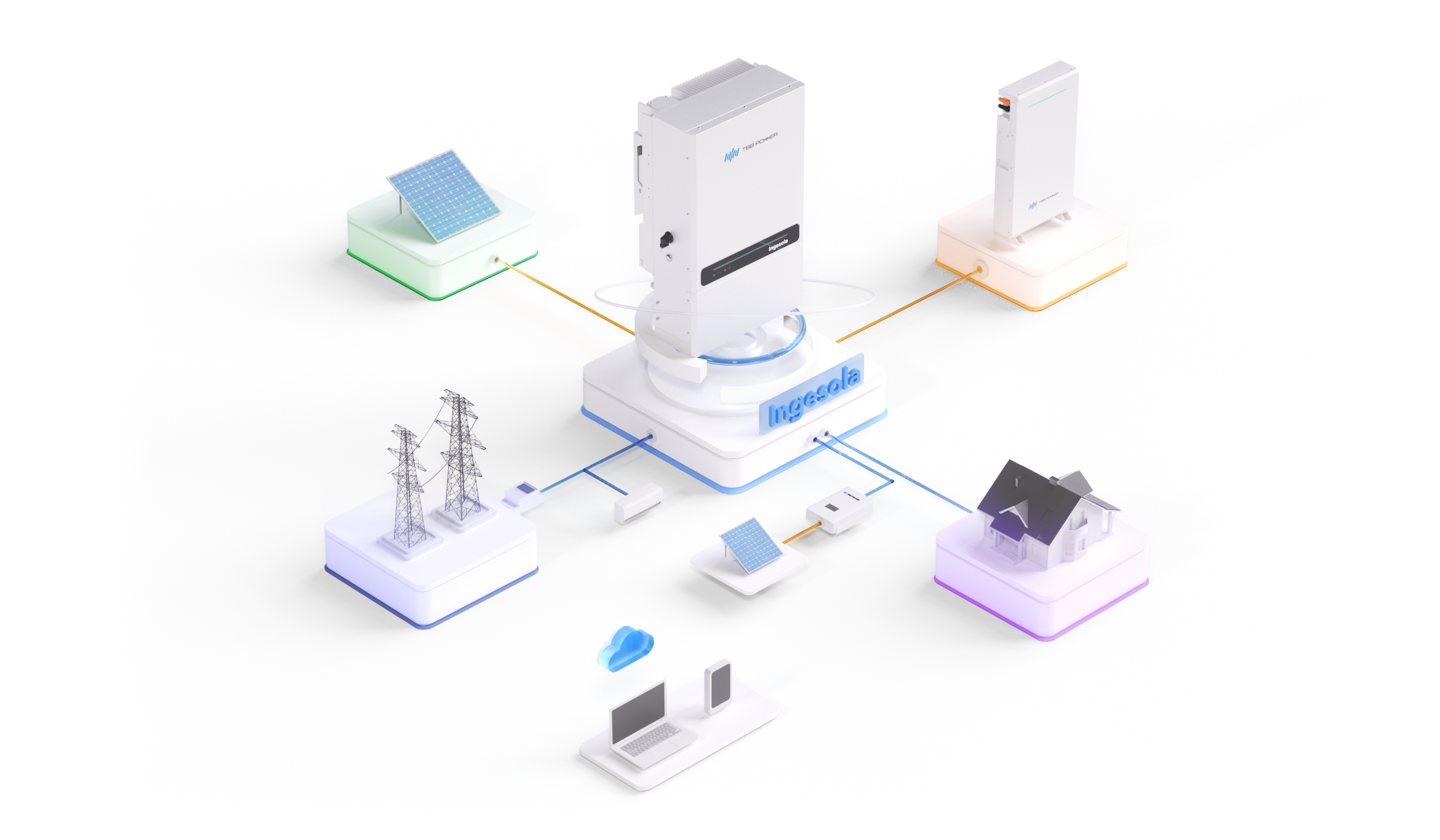

      Suitable for Multiple Applications

      Suitable for Multiple Applications

      Can be applied in Hybrid ESS, AC Coupled PV ESS, Power Backup (with generator) and EV Charging (with EV Charger & V2G Charger).

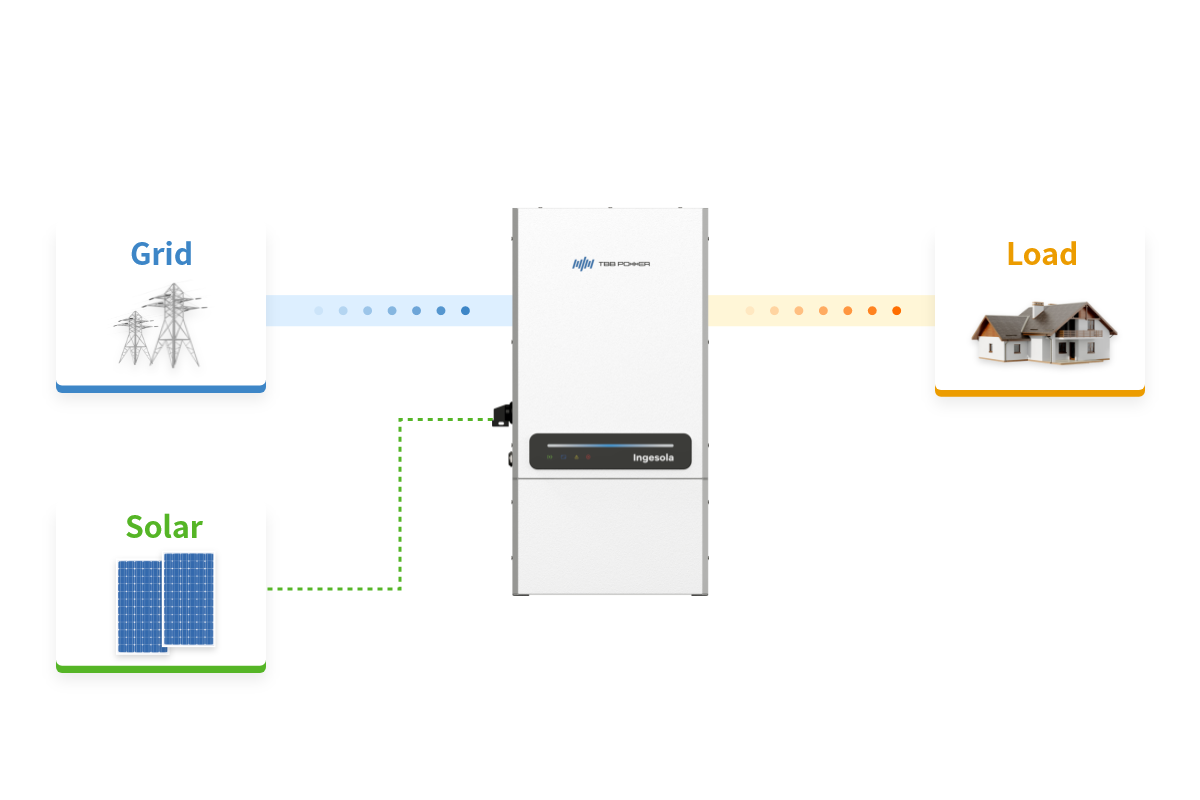

      Supports operating without battery

      Supports operating without battery

      When running without battery connection, Ingesola prioritizes PV energy for loads, feeding surplus to the grid if permitted.

      Ingesola single-phase hybrid inverter for hybrid solutions applications

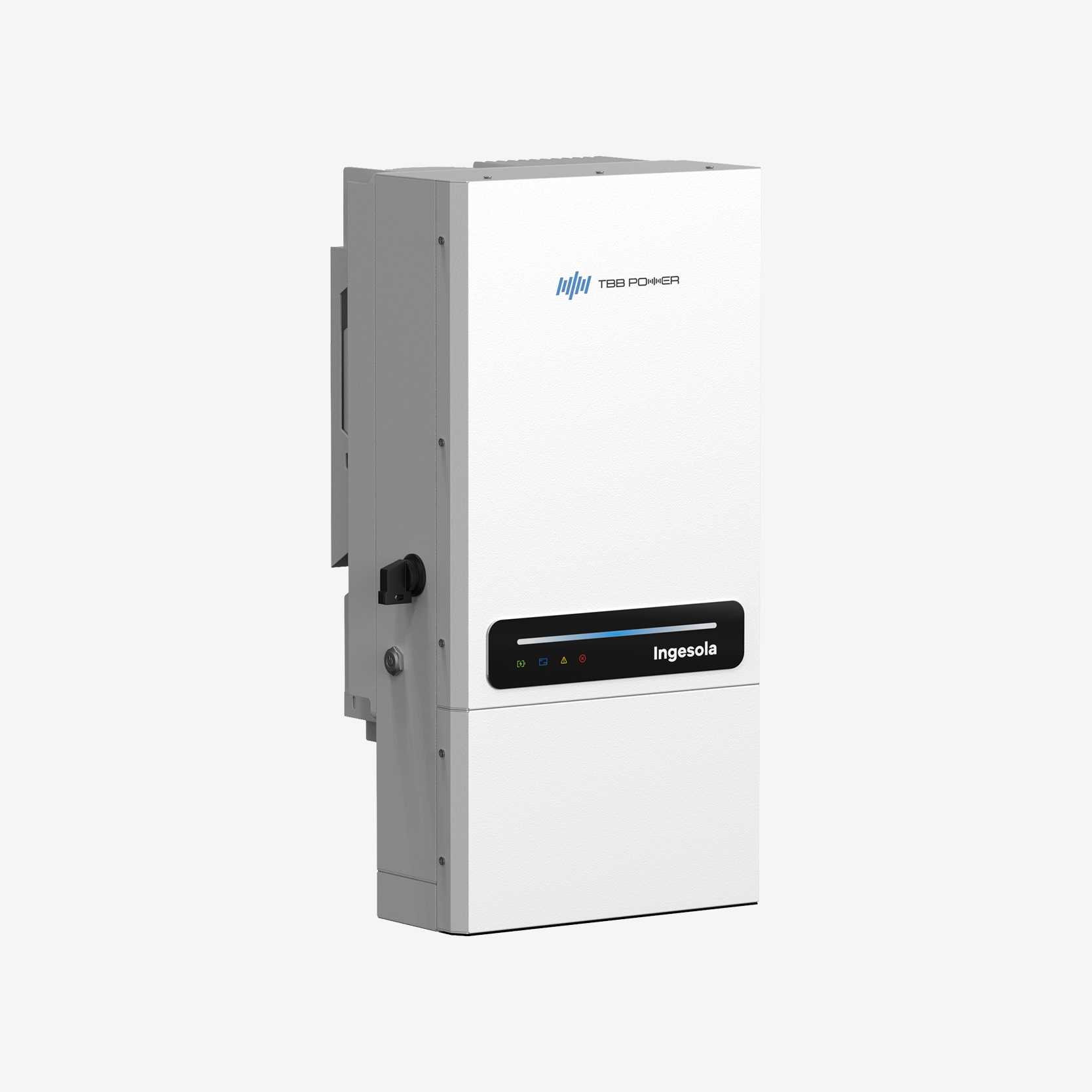

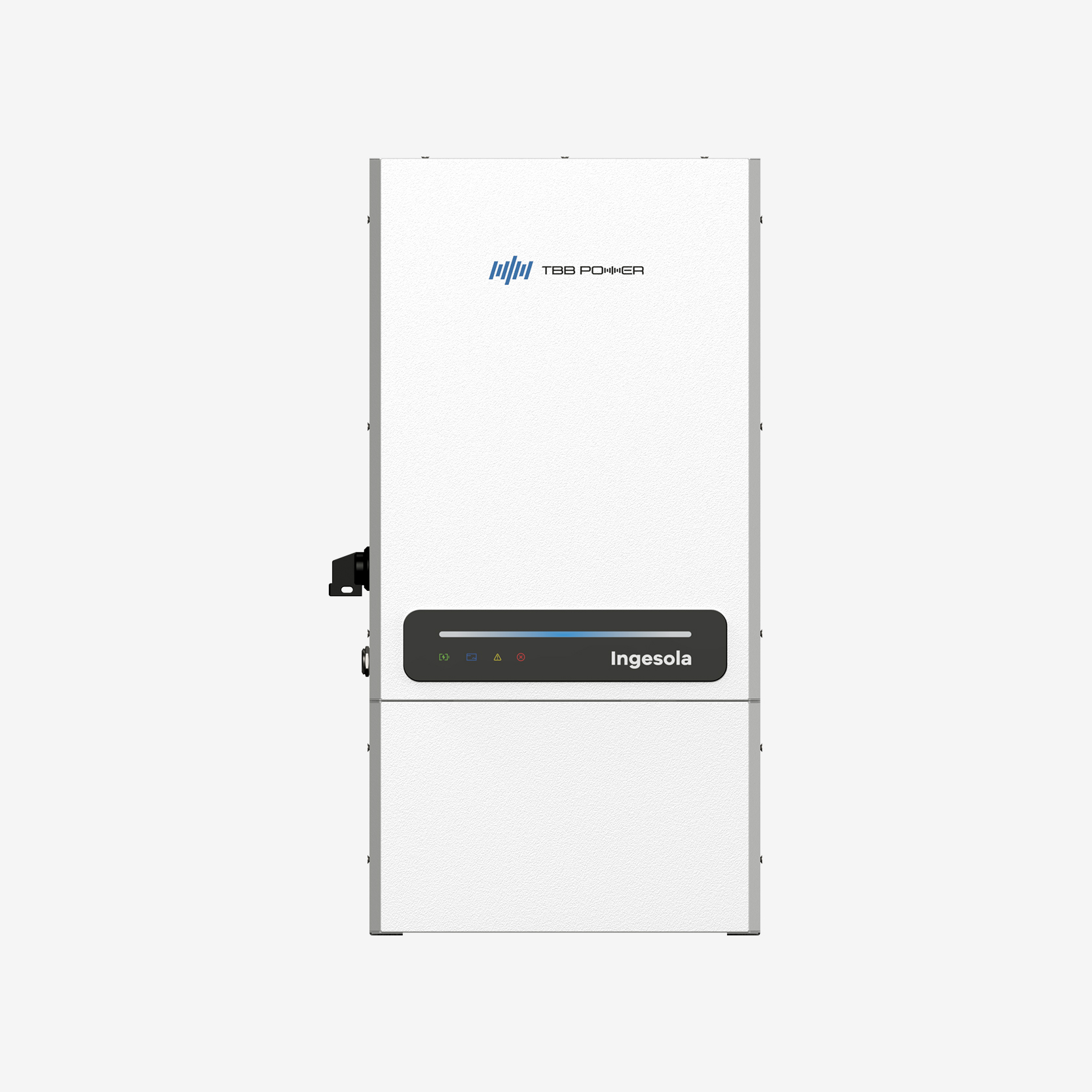

      ingesola single-phase product imageingesola single-phase product imageingesola single-phase product image

      Specification

      • Ingesola S8

      • Ingesola S5

      • Ingesola S3

      • Nominal AC Input
        Single phase, 220/230/240Vac, 50/60Hz
      • Nominal Output Power (W)
        8000
      • DC Voltage Range (V)
        42-60
      • Max. PV Input Voltage (V)
        800
      • IP Protection
        IP65 (Outdoor)
      • Nominal AC Input
        Single phase, 220/230/240Vac, 50/60Hz
      • Nominal Output Power (W)
        8000
      • DC Voltage Range (V)
        42-60
      • Max. PV Input Voltage (V)
        800
      • IP Protection
        IP65 (Outdoor)
      • Nominal AC Input
        Single phase, 220/230/240Vac, 50/60Hz
      • Nominal Output Power (W)
        8000
      • DC Voltage Range (V)
        42-60
      • Max. PV Input Voltage (V)
        800
      • IP Protection
        IP65 (Outdoor)

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
