      All-in-one Solar Inverter
      Apollo Maxx

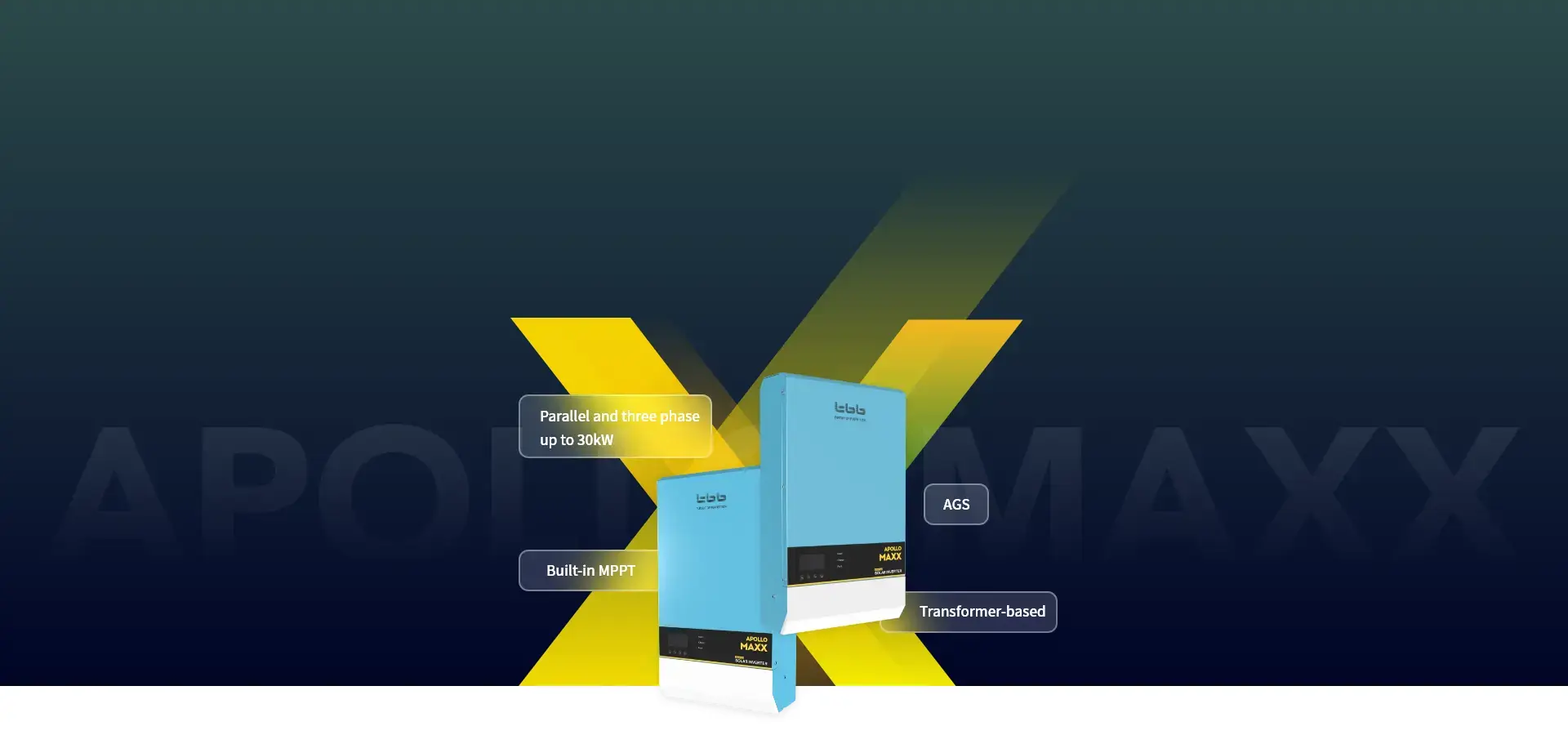

      Apollo Maxx solar inverter for off-grid applications product features

      Apollo Maxx

      All-in-one Solar Inverter

      Apollo Maxx

      2kW-5kW

      Apollo Maxx is a powerful all-in-one solar inverter combining a high-performance inverter, battery charger, an MPPT solar charge controller and a high-speed automatic transfer switch in a compact casing, designed with zero transfer time perfect for critical devices such as servers and ATM, to ensure uninterruptible power supply all the time. So it is mainly for backup power and off grid applications. It’s capable to expand power capacity to 30kW with 6 units in parallel and three-phase operation.

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      Parallel and three-phase up to 6 units

      Parallel and three-phase up to 6 units

      All-in-one design with built-in MPPT

      All-in-one design with built-in MPPT

      AGS Function for Generator Control

      AGS Function for Generator Control

      0ms transfer time to protect critical loads

      0ms transfer time to protect critical loads

      Power assist & power control

      Power assist & power control

      Compatible with lithium battery

      Compatible with lithium battery

      Inverter efficiency up to 96%

      Inverter efficiency up to 96%

      MPPT efficiency up to 98%

      MPPT efficiency up to 98%

      Remote monitoring and control via Nova

      Remote monitoring and control via Nova

      Parallel and Three-phase up to 7 Units

      Parallel and Three-phase up to 7 Units

      Up to 7 Apollo Maxx can operate in parallel to achieve higher power output. Three-phase operation is also possible. The system capacity can be expanded up to 30kW to meet more power consumption need. You can start with the comprehensive system or a smaller solution and gradually expand it, depending on what best suits your needs and budget.

      Power Control maximizes the use of limited AC power and protect it from overload

      Power Control: maximizes the use of limited AC power and protect it from overload

      Apollo Maxx can automatically adjust its charging current by taking loads into account and only use the surplus current to charge the battery to avoid overload to the limited AC source. Thus, Apollo Maxx can also keep generators running at their optimum power level.

      Power Assist enables limited AC source to power heavy loads

      Power Assist: enables limited AC source to power heavy loads

      When the load keeps increasing and exceeds what the limited AC source can carry, Apollo Maxx will discharge the battery to supply power to compensate the insufficient part of the limited AC source. When the load reduces, the spare power will be used to recharge the battery.

      Uninterruptible AC power (UPS function)

      Uninterruptible AC power (UPS function)

      When the produced solar energy is more than needed, the Apollo Maxx will use the surplus to charge the batteries. In the event of a grid failure, or when the generator power is disconnected, the inverter within the Apollo Maxx will be automatically activated and discharge the batteries to supply the connected loads. This happens seamlessly in 0ms that your sensitive or any other electronic equipment will continue to operate without interruption.

      Apollo Maxx solar inverter for off-grid applications

      Apollo Maxx solar inverter product imageApollo Maxx solar inverter product imageApollo Maxx solar inverter product imageApollo Maxx solar inverter product imageApollo Maxx solar inverter product imageApollo Maxx solar inverter product image

      Specification

      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Cont. output power at 25°C (W)
        4000
      • Max AC charge current (A)
        70
      • Max solar charge current(A)
        90
      • Maximum PV power(W)
        6000
      • PV open circuit voltage (V)
        150
      • Protection index
        IP21

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…

      Try Our Demo
