      Automatic Voltage Switch
      AVS
      Automatic Voltage Switcher for solar inverter product features

      AVS

      Automatic Voltage Switch

      AVS

      30A/50A

      TBB AVS is an Automatic Voltage Switcher built-in with a microprocessor. The AVS will switch off the equipment connected to it if the grid voltage goes beyond threshold limits and will re-connect automatically when the mains power returns to normal. Re-connection takes place after a time delay to ensure the stability of the mains. In addition, the start-up delay provides protection against power-back surges which are commonly experienced after the recovery of power. Surge and spike protection are also incorporated to ensure protection against these commonly occurring events.

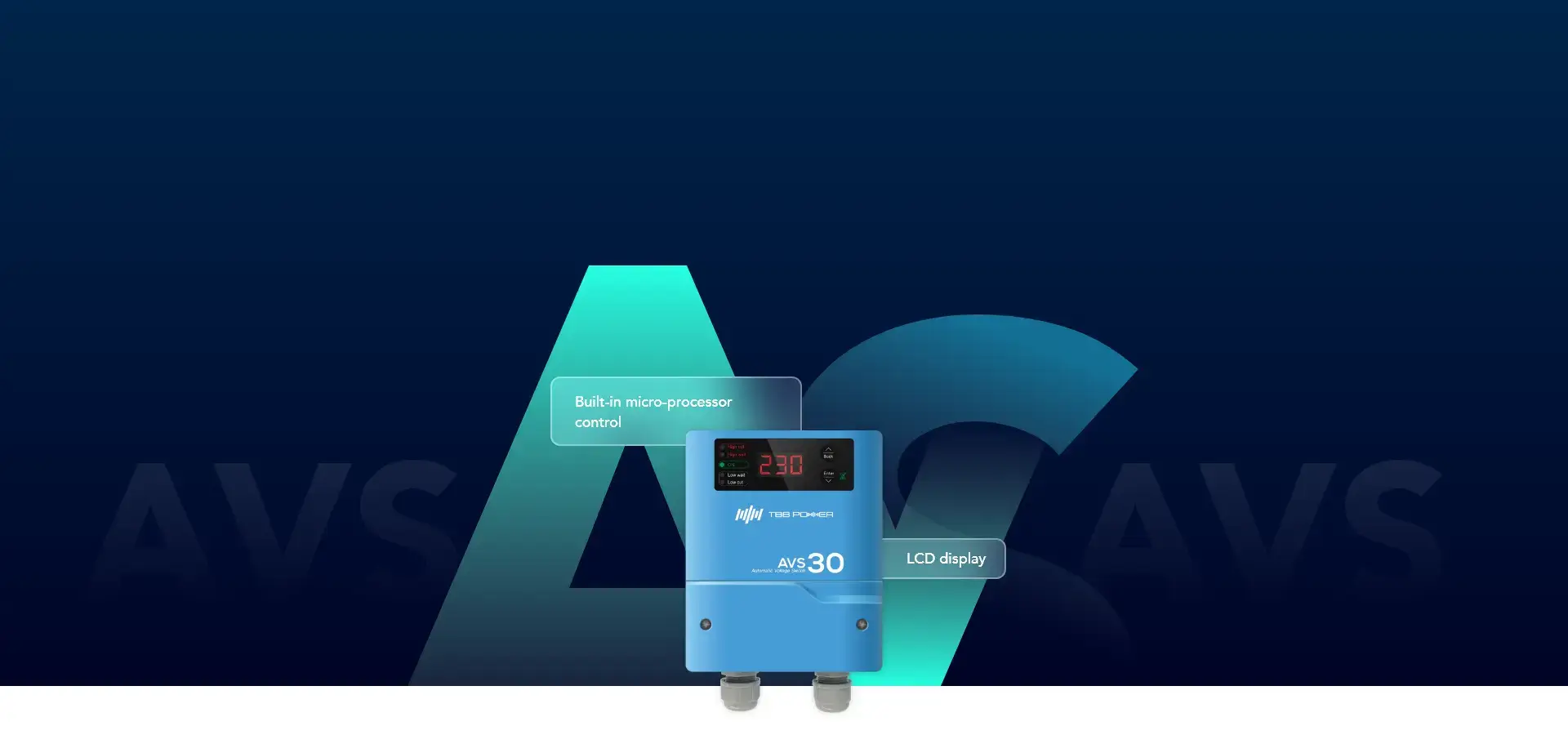

      Micro-processor control

      Micro-processor control

      LCD display

      LCD display

      Over/under-voltage protection

      Over/under-voltage protection

      Fast switch off against over-voltage

      Fast switch off against over-voltage

      Automatic Voltage Switcher for solar inverter applications

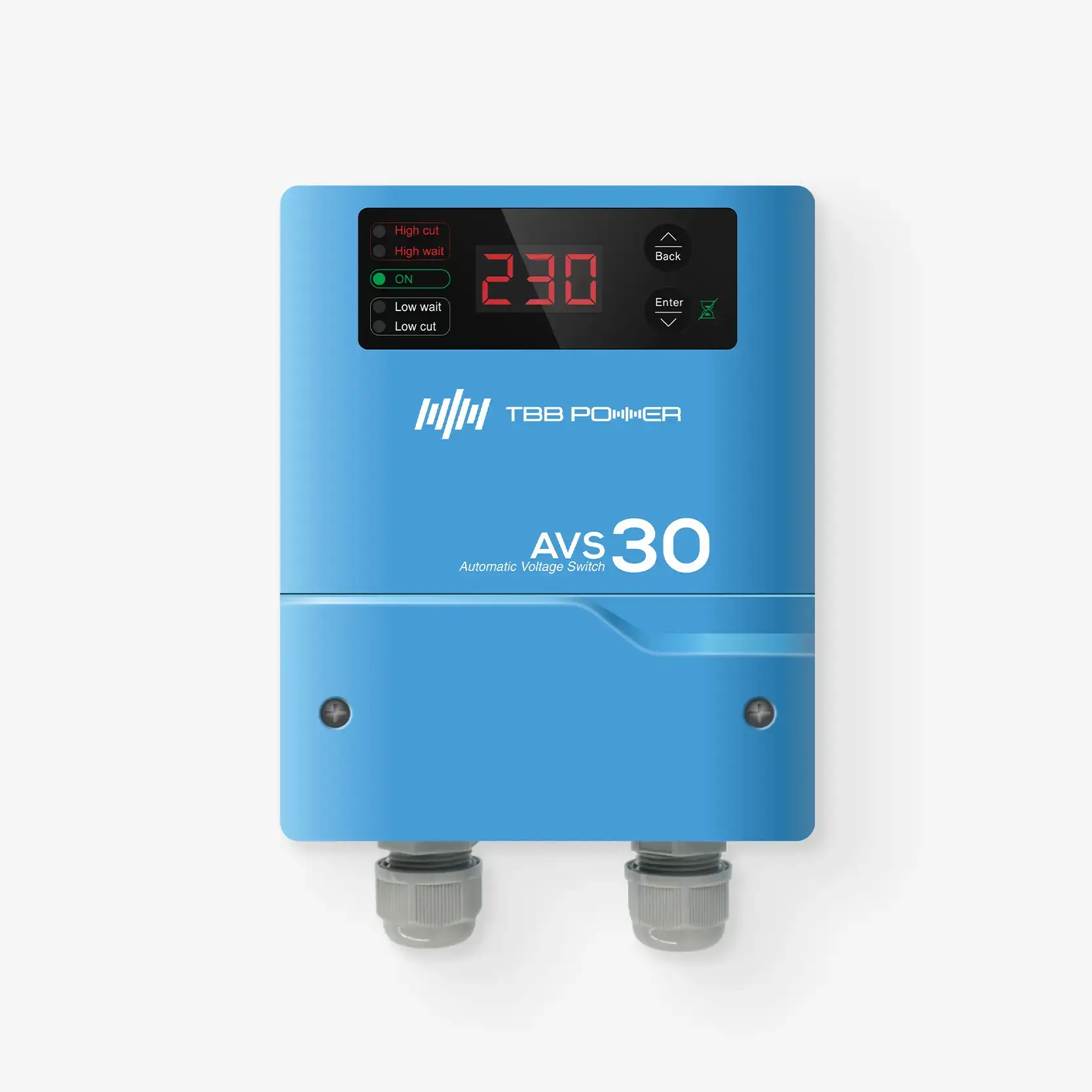

      Automatic Voltage Switcher for solar inverter product imageAutomatic Voltage Switcher for solar inverter product imageAutomatic Voltage Switcher for solar inverter product image

      Specification

      • Nominal Voltage (VAC)
        230
      • Nominal Current (A)
        50
      • High Voltage Disconnect (VAC)
        230~300(Adjustable)
      • Low Voltage Disconnect(VAC)
        150~230(Adjustable)
      • Protection index
        IP41
      • Nominal Voltage (VAC)
        230
      • Nominal Current (A)
        50
      • High Voltage Disconnect (VAC)
        230~300(Adjustable)
      • Low Voltage Disconnect(VAC)
        150~230(Adjustable)
      • Protection index
        IP41

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
